TDA7100HTMA1 - Infineon

Description: RF Transmitter ASK/FSK TRANSMITTER 10-PIN PKG

Download TDA7100HTMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

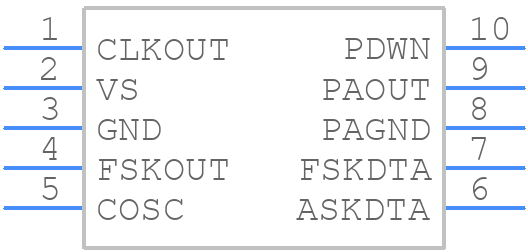

TDA7100HTMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
TDA7100HTMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-10
click to zoom
3D Models
TDA7100HTMA1 - Infineon - 3D model - Small Outline Packages - PG-TSSOP-10
click to zoom

TDA7100HTMA1 Details

  • Manufacturer Part Number:

    TDA7100HTMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    GREEN, PLASTIC, TSSOP-10

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

TDA7100HTMA1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency sources, and ensure good grounding and decoupling. Follow Infineon's EMC guidelines for automotive applications.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, clock, and reset signals. Consult Infineon's application notes and technical support resources for guidance.
  • While the TDA7100HTMA1 is designed for automotive applications, it can be used in other applications with similar requirements. However, ensure that the device meets the specific requirements of your application, and consult with Infineon's technical support if necessary.
