TDA7233D013TR - STMicroelectronics

Description: STMicroelectronics TDA7233D013TR Audio Amplifier, Class-AB Monolithic, 8-Pin SOIC

Download TDA7233D013TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

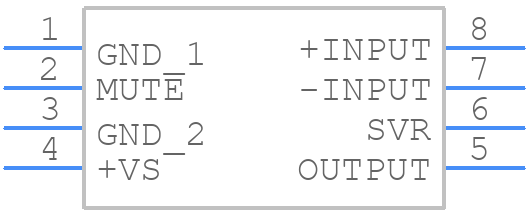

Symbol
TDA7233D013TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7233D013TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TDA7233D013TR
click to zoom
3D Models
TDA7233D013TR - STMicroelectronics - 3D model - Small Outline Packages - TDA7233D013TR
click to zoom

TDA7233D013TR Details

  • Manufacturer Part Number:

    TDA7233D013TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    39 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Power-Nom:

    1.9 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TDA7233D013TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7233D013TR involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the power supply decoupling capacitors. Additionally, using a ground plane and shielding can help reduce EMI.
  • To ensure the TDA7233D013TR operates within its SOA, calculate the device's power dissipation using the formula Pd = (Vin - Vout) x Iout. Then, ensure the device's junction temperature (Tj) remains below the maximum rating of 150°C by providing adequate heat sinking and airflow.
  • When selecting input and output capacitors for the TDA7233D013TR, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low-ESR capacitor with a high capacitance value (e.g., 10uF to 22uF) and a voltage rating above the input voltage is recommended.
  • To troubleshoot issues with the TDA7233D013TR, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and component selection. Use an oscilloscope to observe the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
  • The TDA7233D013TR's quiescent current (Iq) contributes to the overall system power consumption, especially in low-power or battery-powered applications. To minimize power consumption, consider using a low-Iq mode or a power-saving feature, if available, and optimize the system's power management strategy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7233D013TR Overview

Use the download button to access the TDA7233D013TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
