TDA7235 - STMicroelectronics

Description: Audio Amplifiers 1.6W Audio Amplifier

Download TDA7235 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

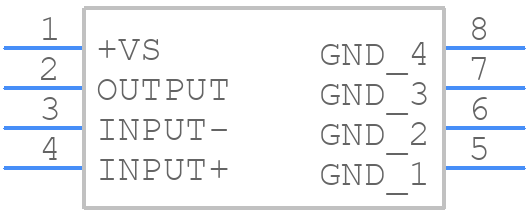

Symbol
TDA7235 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7235 - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TDA7235
click to zoom
3D Models
TDA7235 - STMicroelectronics - 3D model - Dual-In-Line Packages - TDA7235
click to zoom

TDA7235 Details

  • Manufacturer Part Number:

    TDA7235

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    MINI, DIP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    38 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Power-Nom:

    1.8 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TDA7235 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7235 is 1.5W, but it can be increased to 2.5W with proper heat sinking.
  • To ensure stability of the output voltage with varying input voltage, it is recommended to use a capacitor with a value of at least 10uF at the input pin and a capacitor with a value of at least 22uF at the output pin.
  • The minimum input voltage required for the TDA7235 to operate is 7V, but it is recommended to use an input voltage of at least 8V for stable operation.
  • While the TDA7235 can deliver up to 3A of output current, it is not recommended for high-current applications due to its thermal limitations. For high-current applications, it is recommended to use a heat sink or a more suitable regulator IC.
  • The output voltage of the TDA7235 can be adjusted by using a resistive divider network between the output pin and the adjust pin. The output voltage can be calculated using the formula: Vout = 2.5V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7235 Overview

Use the download button to access the TDA7235 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
