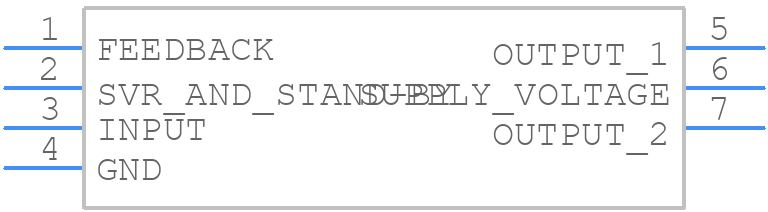

TDA7240AV - STMicroelectronics

TDA7240AV Details

• Manufacturer Part Number:

  TDA7240AV

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  ZFM

• Package Description:

  HEPTAWATT V-7

• Pin Count:

  7

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Bandwidth-Nom:

  22 kHz

• Consumer IC Type:

  AUDIO AMPLIFIER

• Gain:

  40 dB

• Harmonic Distortion:

  10%

• JESD-30 Code:

  R-XZIP-T7

• JESD-609 Code:

  e3

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  7

• Output Power-Nom:

  20 W

• Package Body Material:

  UNSPECIFIED

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP7,.15,.2TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  120 mA

• Supply Voltage-Max (Vsup):

  18 V

• Surface Mount:

  NO

• Technology:

  MOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG
