- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA7261
- Part Number TDA7261
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Transistor Outline, Vertical
- Footprint Name Transistor Outline, Vertical - Multiwatt 8_1
- Released Date Aug 22, 2026
- Last Modified Date Aug 22, 2026 1:01 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7261 Details
-
Manufacturer Part Number:
TDA7261
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
MULTIWATT-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Bandwidth-Nom:
22 kHz
TDA7261 Frequently Asked Questions (FAQs)
-
A good PCB layout for the TDA7261 involves keeping the audio signal paths as short as possible, using a ground plane, and placing decoupling capacitors close to the IC. Additionally, it's recommended to keep the power supply lines away from the audio signal lines and to use a common mode filter to reduce EMI.
-
The input capacitor values for the TDA7261 depend on the input impedance of the source and the desired high-pass filter cutoff frequency. A good starting point is to use a 1-10uF capacitor in series with a 1-10kΩ resistor to form a high-pass filter with a cutoff frequency around 10-100Hz.
-
The maximum power dissipation of the TDA7261 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation based on the ambient temperature and the thermal resistance. Typically, the maximum power dissipation is around 2-3W for the DIP package and 1-2W for the SO package.
-
The TDA7261 has built-in overvoltage protection, but it's still recommended to add external protection circuitry such as a voltage regulator or a transient voltage suppressor to protect the IC from overvoltage conditions. For undervoltage protection, a voltage supervisor or a reset IC can be used to reset the system or put it into a low-power state when the voltage drops below a certain threshold.
-
The recommended mute timing for the TDA7261 is around 10-20ms to prevent audible clicks. This can be achieved using an external timer or a microcontroller to control the mute pin.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA7261 Overview

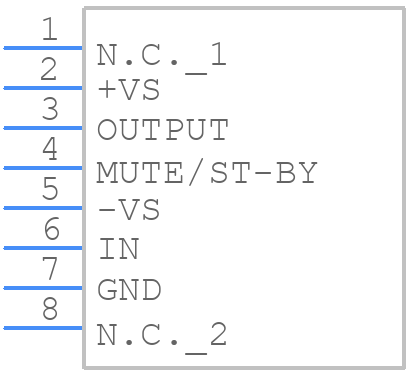

Use the download button to access the TDA7261 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72,
or try a keyword search, such as Audio/Video Amplifiers
