TDA7263 - STMicroelectronics

Description: Audio Amplifiers 12W Stereo Amplifier

Download TDA7263 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

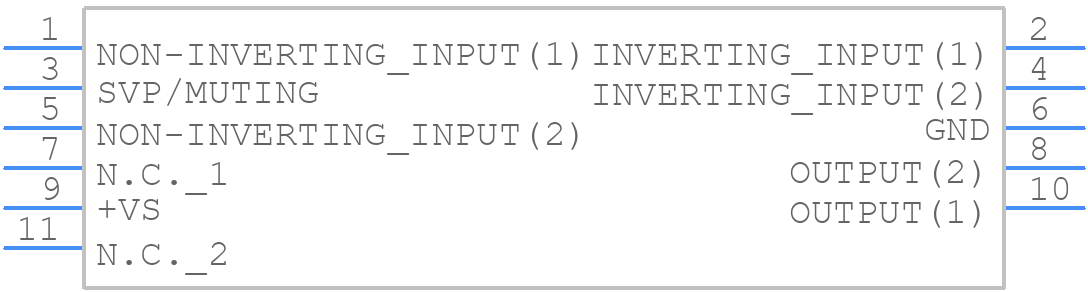

TDA7263 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

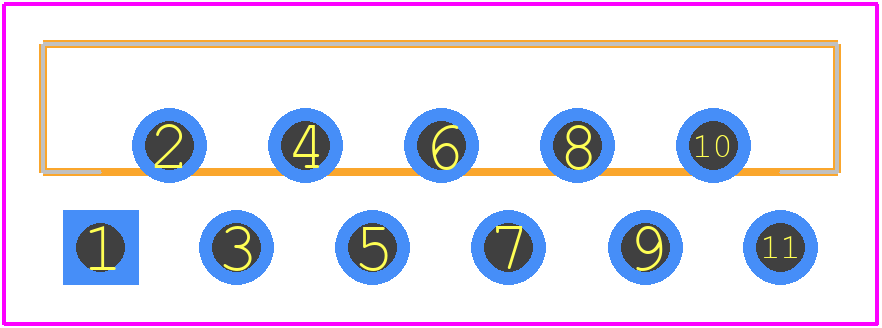

TDA7263 - STMicroelectronics PCB footprint - Other - Other - Clipwatt11
click to zoom
3D Models
TDA7263 - STMicroelectronics - 3D model - Other - Clipwatt11
click to zoom

TDA7263 Details

  • Manufacturer Part Number:

    TDA7263

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    ZFM

  • Package Description:

    CLIPWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    2

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    12 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.1,.1,67

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    95 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA7263 Frequently Asked Questions (FAQs)

  • A 100nF to 1uF ceramic capacitor is recommended to decouple the power supply pins (VCC and GND) to reduce noise and ensure stable operation.
  • To ensure SOA, keep the output power below the maximum rating (20W), maintain a minimum load impedance of 4 ohms, and avoid excessive temperature increases (above 150°C).
  • The bootstrap capacitor (CB) is used to generate a voltage supply for the high-side driver, allowing the output stage to swing close to the positive supply rail, increasing the amplifier's output voltage swing.
  • The gain of the TDA7263 can be configured by selecting the appropriate feedback resistors (Rf and Ri) and input capacitors (Ci) according to the desired gain and frequency response.
  • The maximum allowed output current of the TDA7263 is 3.5A peak, which corresponds to a maximum output power of 20W into a 4 ohm load.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7263 Overview

Use the download button to access the TDA7263 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
