TDA7263M - STMicroelectronics

Description: IC AMP AB STEREO 12W 11MULTIWATT

Download TDA7263M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

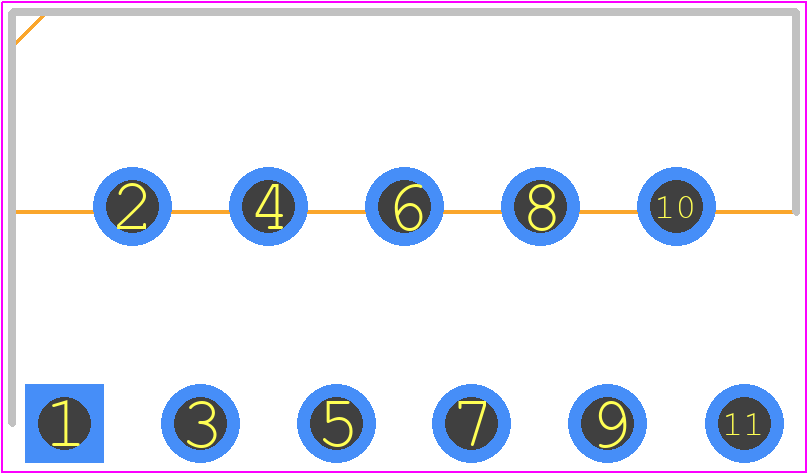

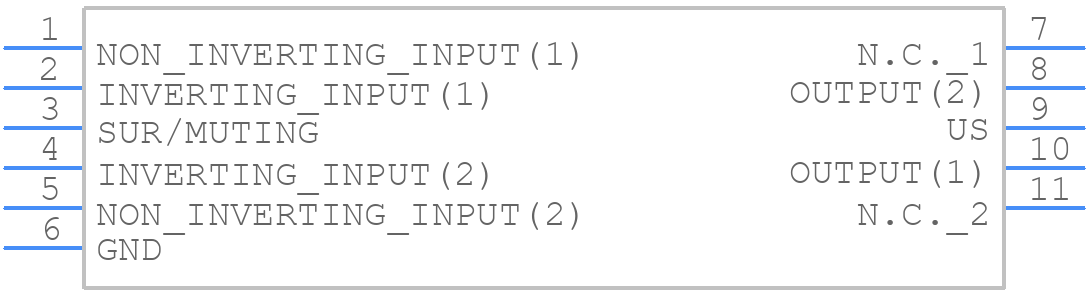

TDA7263M - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TDA7263M
click to zoom
3D Models
TDA7263M - STMicroelectronics  - 3D model - Transistor Outline, Vertical - TDA7263M
click to zoom

TDA7263M Details

  • Manufacturer Part Number:

    TDA7263M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    ZIP, ZIP11,.2,.17,67TB

  • Pin Count:

    11

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • Risk Rank:

    9.46

  • YTEOL:

    0

  • Bandwidth-Nom:

    80 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T11

  • JESD-609 Code:

    e0

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    12 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    95 mA

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7263M Overview

Use the download button to access the TDA7263M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
