TDA7264A - STMicroelectronics

Description: Audio Amplifiers 25/25W STEREO AMP

Download TDA7264A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

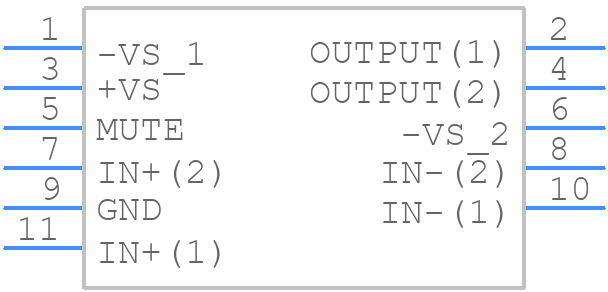

TDA7264A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

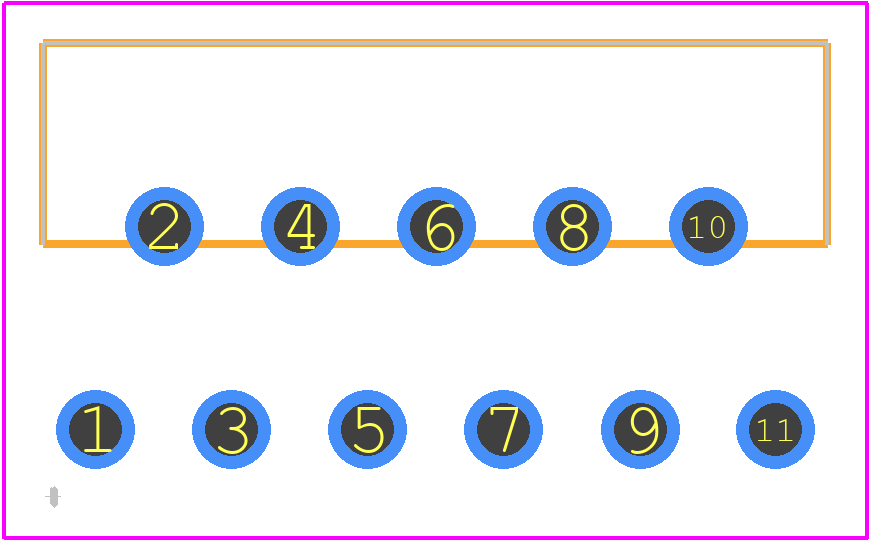

TDA7264A - STMicroelectronics PCB footprint - Other - Other - TDA7264A-2
click to zoom
3D Models
TDA7264A - STMicroelectronics - 3D model - Other - TDA7264A-2
click to zoom

TDA7264A Details

  • Manufacturer Part Number:

    TDA7264A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    25 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max (Vsup):

    22.5 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA7264A Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7264A involves keeping the audio signal paths as short as possible, using a ground plane, and placing decoupling capacitors close to the IC. Additionally, it's recommended to keep the power supply lines away from the audio signal lines and to use a common mode filter to reduce EMI.
  • The choice of input and output coupling capacitors depends on the frequency response and impedance of the audio signal. A general rule of thumb is to choose capacitors with a high capacitance value (e.g. 10uF) and a low equivalent series resistance (ESR) to minimize signal attenuation and distortion.
  • The maximum power dissipation of the TDA7264A is 2.5W. To ensure it doesn't overheat, it's recommended to provide a heat sink or a thermal pad, and to keep the ambient temperature below 70°C. Additionally, the IC should be mounted on a PCB with a good thermal conductivity.
  • No, the TDA7264A is not designed to be used as a bridge-tied load (BTL) amplifier. It's a single-ended amplifier and should be used with a single speaker or load.
  • The gain of the TDA7264A can be adjusted by changing the value of the feedback resistors (Rf) and the input resistors (Ri). A higher gain can be achieved by increasing the value of Rf and decreasing the value of Ri, and vice versa.
