TDA7265 - STMicroelectronics

Description: TDA7265, Audio Amplifier Class-AB stereo +85 °C 11-Pin MULTIWATT V

Download TDA7265 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

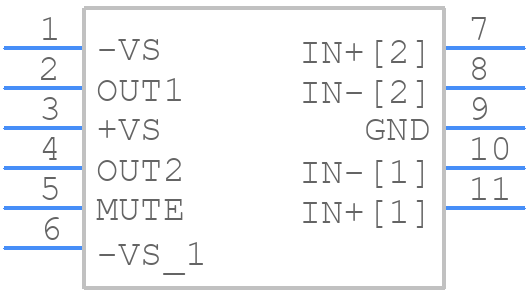

Symbol
TDA7265 - STMicroelectronics - PCB symbol
click to zoom

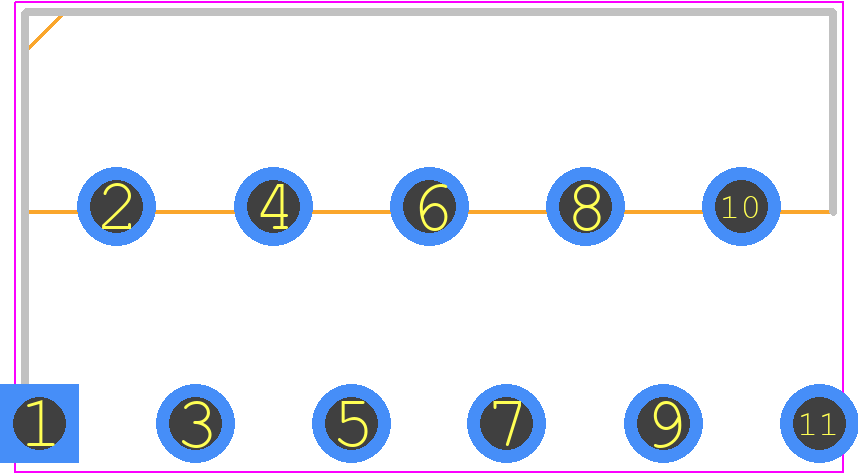

PCB Footprints
TDA7265 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Heptawatt11 V
click to zoom
3D Models
TDA7265 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Heptawatt11 V
click to zoom

TDA7265 Details

  • Manufacturer Part Number:

    TDA7265

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    25 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA7265 Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7265 is 18V, but it's recommended to use a voltage regulator to ensure a stable 12V supply for optimal performance.
  • The TDA7265 can be configured for stereo or mono operation by connecting the relevant pins. For stereo operation, connect the LOUT and ROUT pins to the left and right channels, respectively. For mono operation, connect the LOUT pin to the speaker and leave the ROUT pin unconnected.
  • The maximum output power of the TDA7265 is 2 x 6W (stereo) or 1 x 12W (mono) into a 4Ω load, with a maximum supply voltage of 12V.
  • To protect the TDA7265 from overheating, ensure good heat dissipation by using a heat sink, and avoid operating the device at maximum power for extended periods. Also, monitor the device temperature and reduce the power output if it exceeds 150°C.
  • While the TDA7265 is designed for a 12V supply, it can operate with a supply voltage between 9V and 15V. However, the output power and efficiency may vary depending on the supply voltage.
