TDA7265A footprint, schematic symbol and 3D model by STMicroelectronics

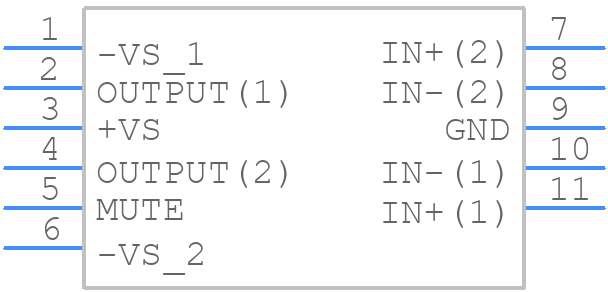

Symbol

click to zoom

PCB Footprints

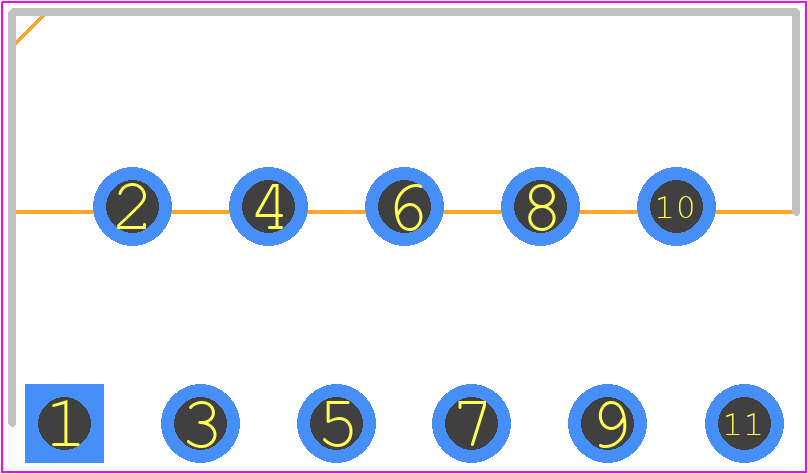

TDA7265A - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt11 V

click to zoom

3D Models

TDA7265A - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt11 V

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7265A
Part Number TDA7265A
Manufacturer STMicroelectronics
Pin Count 11
Part Category Integrated Circuit
Package Category Transistor Outline, Vertical
Footprint Name Transistor Outline, Vertical - Multiwatt11 V
Released Date Mar 26, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7265A Details

Manufacturer Part Number:
TDA7265A
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Morocco
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
12 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
5
Consumer IC Type:
CLASS AB AUDIO AMPLIFIER
JESD-30 Code:
R-PZIP-T11
JESD-609 Code:
e3
Number of Functions:
2
Number of Terminals:
11
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
ZIP
Package Equivalence Code:
ZIP11,.2,.17,67TB
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Supply Current-Max:
130 mA
Surface Mount:
NO
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.7 mm
Terminal Position:
ZIG-ZAG

TDA7265A Frequently Asked Questions (FAQs)

The maximum power supply voltage that can be applied to the TDA7265A is 18V. Exceeding this voltage may damage the device.
To ensure stable operation, it is recommended to decouple the power supply lines with capacitors (e.g., 100nF and 10uF) and to use a low-ESR capacitor (e.g., 10uF) at the output stage.
The recommended operating temperature range for the TDA7265A is -40°C to 105°C. Operating outside this range may affect the device's performance and reliability.
The gain of the TDA7265A can be configured by connecting a resistor (Rg) between the gain pin (GAIN) and ground. The gain is calculated as 20 dB + (Rg/1.2 kΩ).
The MUTE pin is used to mute the output stage of the TDA7265A. When the MUTE pin is pulled low, the output stage is disabled, and the output voltage is reduced to a minimum value.

Trust Checks

Expert Contribution

System Verified

Community Approved

TDA7265A Overview

Use the download button to access the TDA7265A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
