TDA7266 - STMicroelectronics

TDA7266 Details

• Manufacturer Part Number:

  TDA7266

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  ZFM

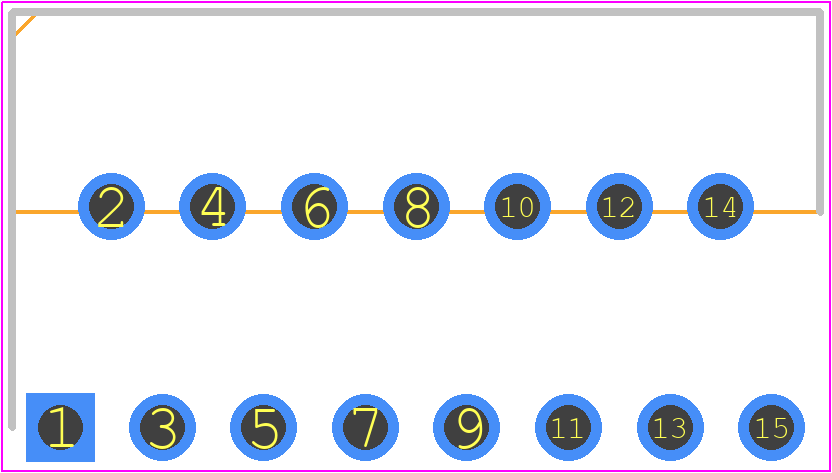

• Package Description:

  MULTIWATT-15

• Pin Count:

  15

• Country Of Origin:

  Morocco

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  5

• Bandwidth-Nom:

  15 kHz

• Consumer IC Type:

  CLASS AB AUDIO AMPLIFIER

• Gain:

  26 dB

• Harmonic Distortion:

  10%

• JESD-30 Code:

  R-PZIP-T15

• JESD-609 Code:

  e3

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  70 °C

• Output Power-Nom:

  7 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP15,.2,.17TB

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  65 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  3 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG
