TDA7266D13TR - STMicroelectronics

Description: Audio Amplifiers 7+7W DUAL BRIDGE AMP

Download TDA7266D13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

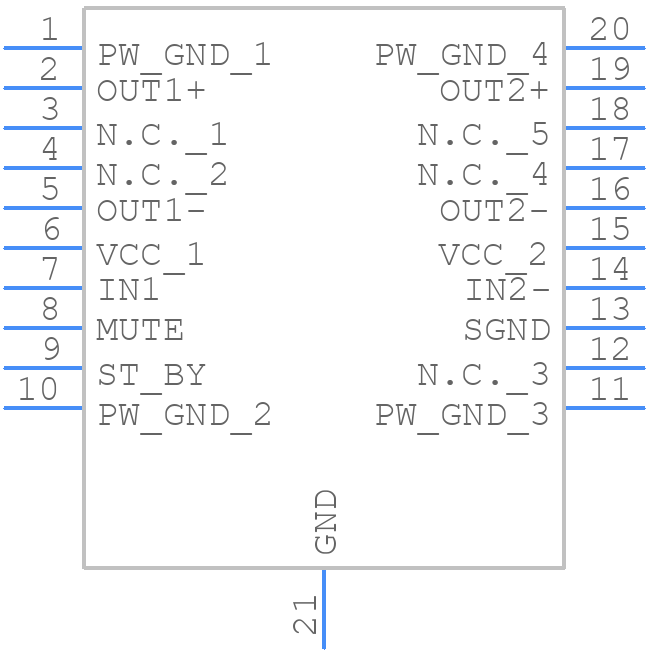

TDA7266D13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7266D13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TDA7266D13TR
click to zoom
3D Models
TDA7266D13TR - STMicroelectronics - 3D model - Small Outline Packages - TDA7266D13TR
click to zoom

TDA7266D13TR Details

  • Manufacturer Part Number:

    TDA7266D13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-15

  • Pin Count:

    15

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    15 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZFM-T15

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TDA7266D13TR Frequently Asked Questions (FAQs)

  • A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling to ensure stable operation and minimize noise.
  • The gain of the TDA7266D13TR can be configured by connecting a resistor (Rg) between the gain pin (pin 5) and ground. The gain is calculated as 20 dB + (Rg/1.2 kΩ).
  • The maximum power dissipation of the TDA7266D13TR is 2.5 W. It is essential to ensure that the device is properly heat-sinked to prevent overheating.
  • Yes, the TDA7266D13TR can be used as a BTL amplifier. In BTL configuration, the output power is increased, and the output impedance is halved. However, it requires a specific PCB layout and component selection to ensure proper operation.
  • The TDA7266D13TR has built-in overvoltage protection, but it is still recommended to add external protection circuitry, such as a voltage regulator and a crowbar circuit, to protect the device from overvoltage and undervoltage conditions.
