TDA7266P13TR - STMicroelectronics

Description: Audio Amplifiers Dual Bridge AMP 3W 3.5V to 12V

Download TDA7266P13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

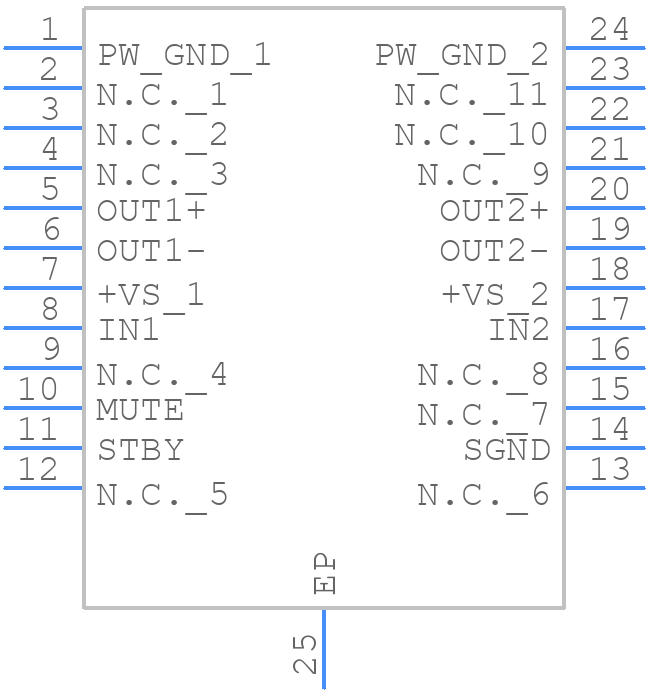

TDA7266P13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7266P13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-24+
click to zoom
3D Models
TDA7266P13TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-24+
click to zoom

TDA7266P13TR Details

  • Manufacturer Part Number:

    TDA7266P13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP24,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TDA7266P13TR Frequently Asked Questions (FAQs)

  • A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling to ensure stable operation and minimize noise.
  • The gain of the TDA7266P13TR can be configured by connecting a resistor (Rg) between the gain pin (pin 5) and ground. The gain is calculated as 20 dB + (Rg/1.2 kΩ).
  • The maximum power dissipation of the TDA7266P13TR is 2.5 W. It is essential to ensure that the device is properly heat-sinked to prevent overheating.
  • Yes, the TDA7266P13TR can be used as a BTL amplifier by connecting the outputs of two devices in a BTL configuration. This configuration provides higher power output and improved efficiency.
  • The TDA7266P13TR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it is recommended to add external protection circuits, such as a voltage regulator and a reset circuit, to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7266P13TR Overview

Use the download button to access the TDA7266P13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
