TDA7267A - STMicroelectronics

Description: Audio Amplifiers 3W Mono Amplifier

Download TDA7267A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

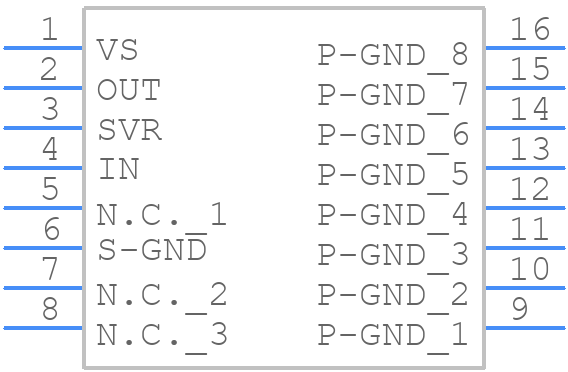

Symbol
TDA7267A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7267A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - TDA7267A
click to zoom
3D Models
TDA7267A - STMicroelectronics - 3D model - Dual-In-Line Packages - TDA7267A
click to zoom

TDA7267A Details

  • Manufacturer Part Number:

    TDA7267A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    POWER, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.1 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TDA7267A Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7267A is 18V. Exceeding this voltage may damage the device.
  • To ensure the TDA7267A operates within its SOA, ensure the output current does not exceed 3.5A, and the junction temperature does not exceed 150°C. Also, avoid operating the device at high power supply voltages and high output currents simultaneously.
  • The recommended heatsink for the TDA7267A is a thermal resistance of 10°C/W or lower. A heatsink with a thermal resistance of 5°C/W or lower is recommended for high-power applications.
  • To protect the TDA7267A from back-EMF, use a freewheeling diode (e.g., 1N4007) in parallel with the inductive load. This diode will absorb the back-EMF and prevent it from damaging the IC.
  • The minimum gain that can be set using the gain pins is 20dB, and the maximum gain is 30dB.
