TDA7292 - STMicroelectronics

Description: STMICROELECTRONICS - TDA7292 - IC, AMP, STEREO, DUAL, 40MULTIWATT

Download TDA7292 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

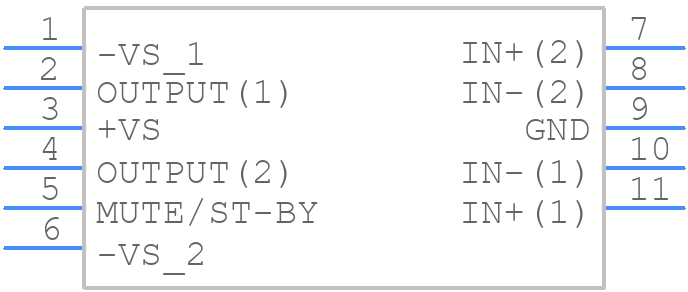

TDA7292 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

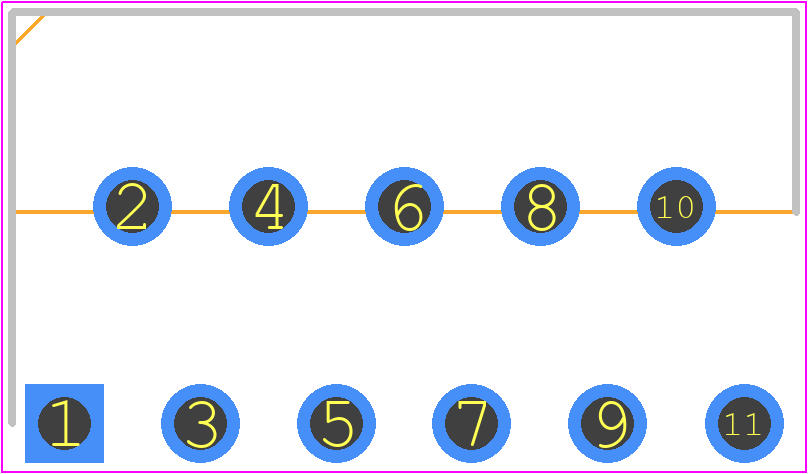

TDA7292 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt11 V
click to zoom
3D Models
TDA7292 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt11 V
click to zoom

TDA7292 Details

  • Manufacturer Part Number:

    TDA7292

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    200 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    29 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZIP-T11

  • JESD-609 Code:

    e3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    40 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA7292 Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7292 is 40V, but it's recommended to operate it between 12V to 30V for optimal performance and reliability.
  • To prevent overheating, ensure good heat sinking, use a heat sink with a thermal resistance of less than 10°C/W, and keep the ambient temperature below 40°C. You can also use thermal shutdown protection circuits or thermal sensors to monitor the temperature.
  • The minimum load impedance recommended for the TDA7292 is 2 ohms, but it's recommended to use a load impedance of 4 ohms or higher for optimal performance and to prevent overheating.
  • Yes, the TDA7292 can be used as a bridge amplifier, but it requires an external circuit to configure it in bridge mode. You'll need to use two TDA7292 ICs, one for each channel, and connect them in a bridge configuration.
  • To reduce noise and hum, use a well-regulated power supply, decouple the power supply lines with capacitors, use a star-grounding scheme, and keep the amplifier circuit away from noisy components and cables.
