Part Image

TDA7293HS - STMicroelectronics

Description: TDA7293HS STMicroelectronics, Audio Amplifier, 15-Pin MULTIWATT H

Download TDA7293HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

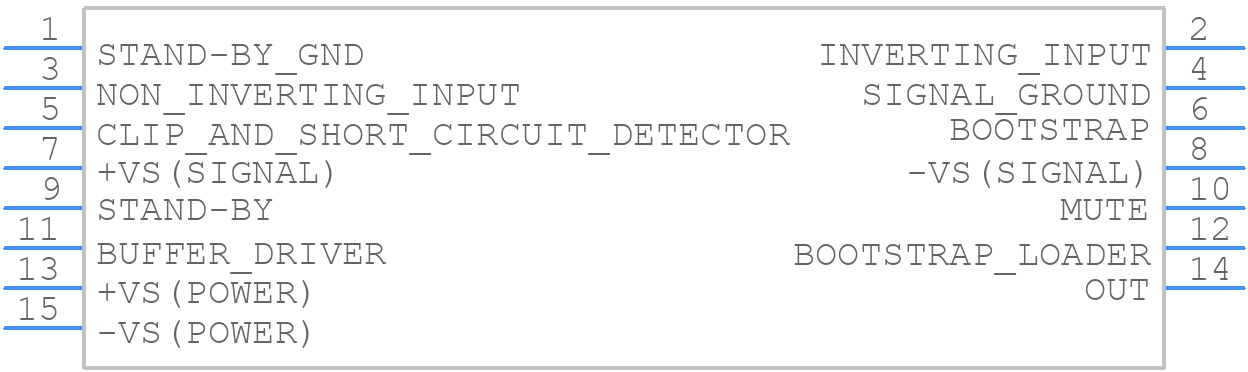

Symbol
TDA7293HS - STMicroelectronics - PCB symbol
click to zoom

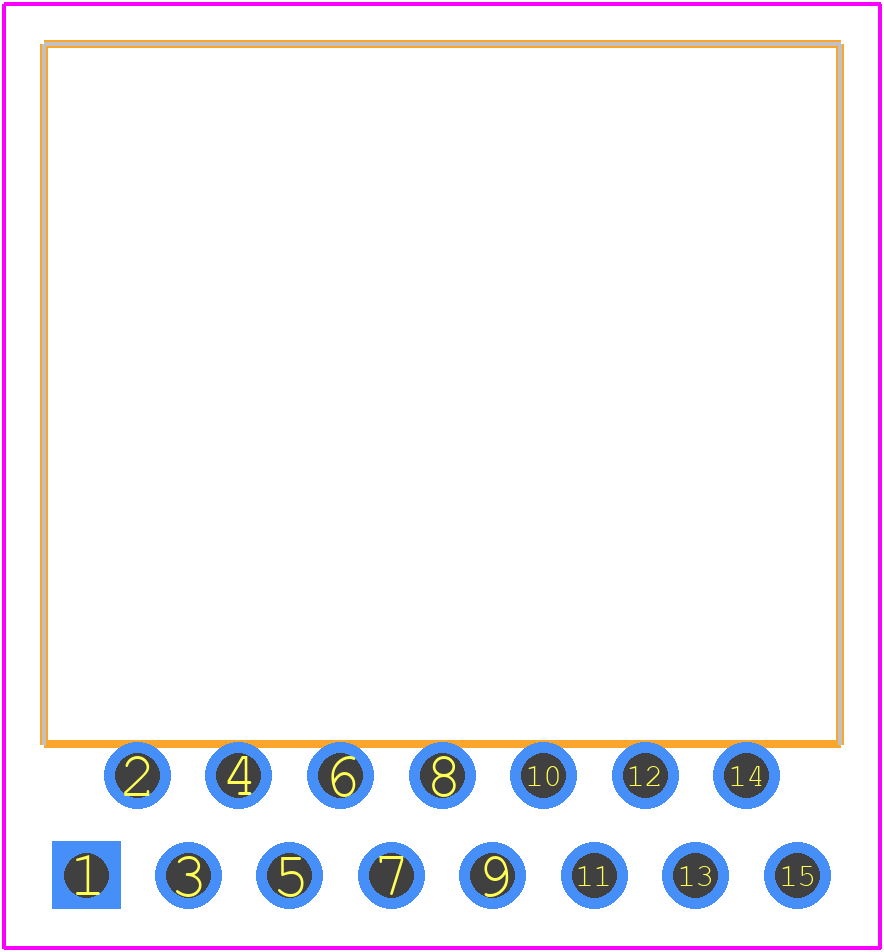

PCB Footprints
TDA7293HS - STMicroelectronics PCB footprint - Other - Other - Multiwatt15H
click to zoom
3D Models
TDA7293HS - STMicroelectronics - 3D model - Other - Multiwatt15H
click to zoom

TDA7293HS Details

  • Manufacturer Part Number:

    TDA7293HS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15H,.1,.8TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7293HS Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7293HS is 40V, but it's recommended to operate it between 12V to 36V for optimal performance.
  • To prevent overheating, ensure good heat sinking, use a heat sink with a thermal resistance of 2°C/W or less, and keep the ambient temperature below 40°C. Also, avoid high power dissipation and high ambient temperatures.
  • The minimum load impedance for the TDA7293HS is 2 ohms, but it's recommended to use a load impedance of 4 ohms or higher for optimal performance and to prevent overheating.
  • Yes, the TDA7293HS can be used as a bridge amplifier, but it requires an external circuit to configure it as a bridge amplifier. Consult the application note AN1046 from STMicroelectronics for more information.
  • To reduce noise and hum, use a well-regulated power supply, decouple the power supply lines with capacitors, and use a star-grounding scheme to minimize ground loops. Also, ensure that the amplifier is properly shielded and keep the signal cables away from the power cables.
