TDA7293V - STMicroelectronics

Description: STMICROELECTRONICS - TDA7293V - Audio Power Amplifier, 100 W, AB, 1 Channel, ± 12V to ± 50V, Multiwatt, 15 Pins

Download TDA7293V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

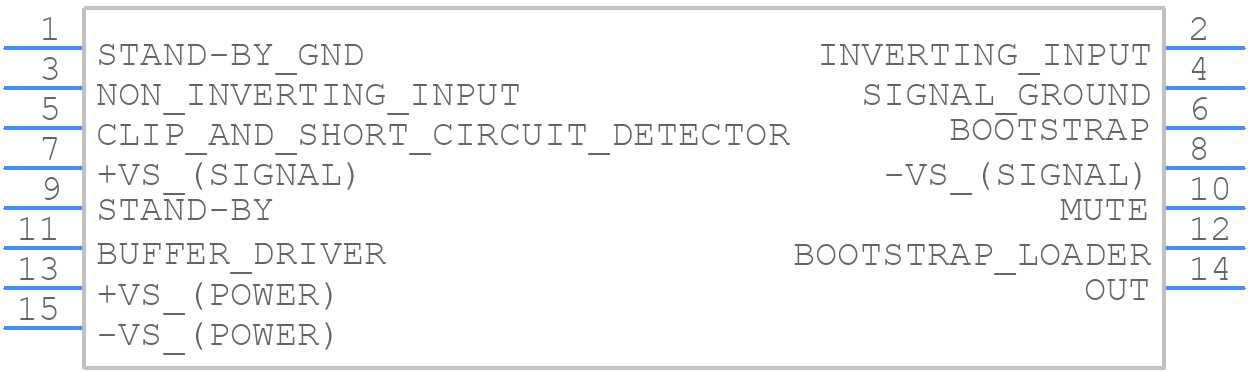

TDA7293V - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

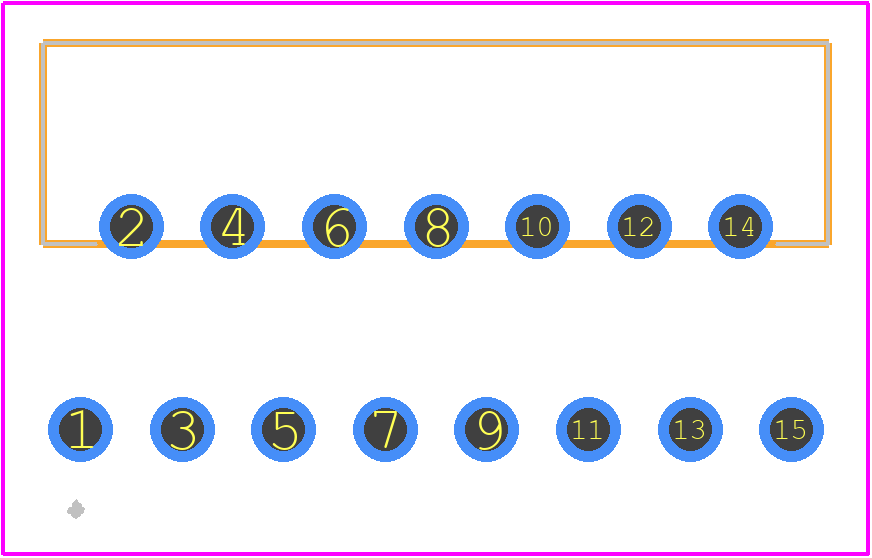

TDA7293V - STMicroelectronics PCB footprint - Other - Other - Multiwatt15 (Vertical)
click to zoom
3D Models
TDA7293V - STMicroelectronics - 3D model - Other - Multiwatt15 (Vertical)
click to zoom

TDA7293V Details

  • Manufacturer Part Number:

    TDA7293V

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-15

  • Pin Count:

    15

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.2,.17TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    12 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7293V Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7293V is 40V, but it's recommended to operate it between 12V to 36V for optimal performance.
  • To prevent overheating, ensure good heat sinking, use a heat sink with a thermal resistance of 2°C/W or less, and keep the ambient temperature below 40°C. Also, avoid high power dissipation and use a thermal shutdown circuit if possible.
  • The TDA7293V can drive loads with impedance between 2Ω and 16Ω. However, for optimal performance, it's recommended to use a load impedance of 4Ω or higher.
  • Yes, the TDA7293V can be used in a bridged configuration to increase the power output. However, this requires careful design and layout considerations to ensure proper operation and to prevent oscillations.
  • The TDA7293V has a built-in mute function that can be controlled by applying a logic signal to the MUTE pin. When the MUTE pin is pulled low, the amplifier is muted, and when it's pulled high, the amplifier is enabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7293V Overview

Use the download button to access the TDA7293V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
