TDA7294HS - STMicroelectronics

Description: Audio Amplifiers 100V, 100W DMOS AMP Up to 40V Mute STDBY

Download TDA7294HS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

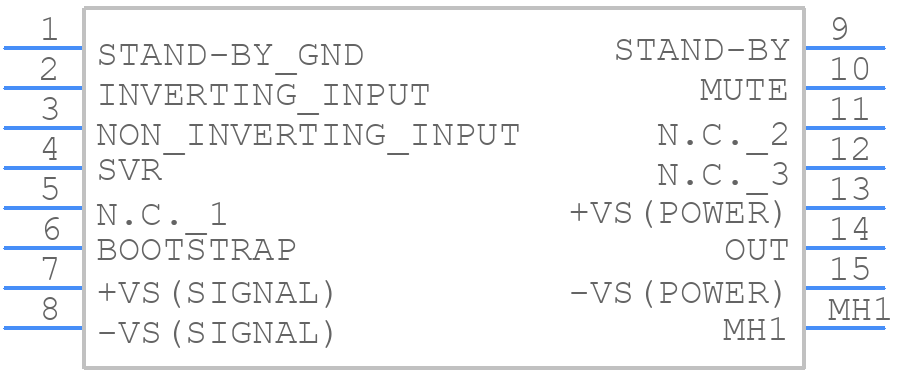

TDA7294HS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

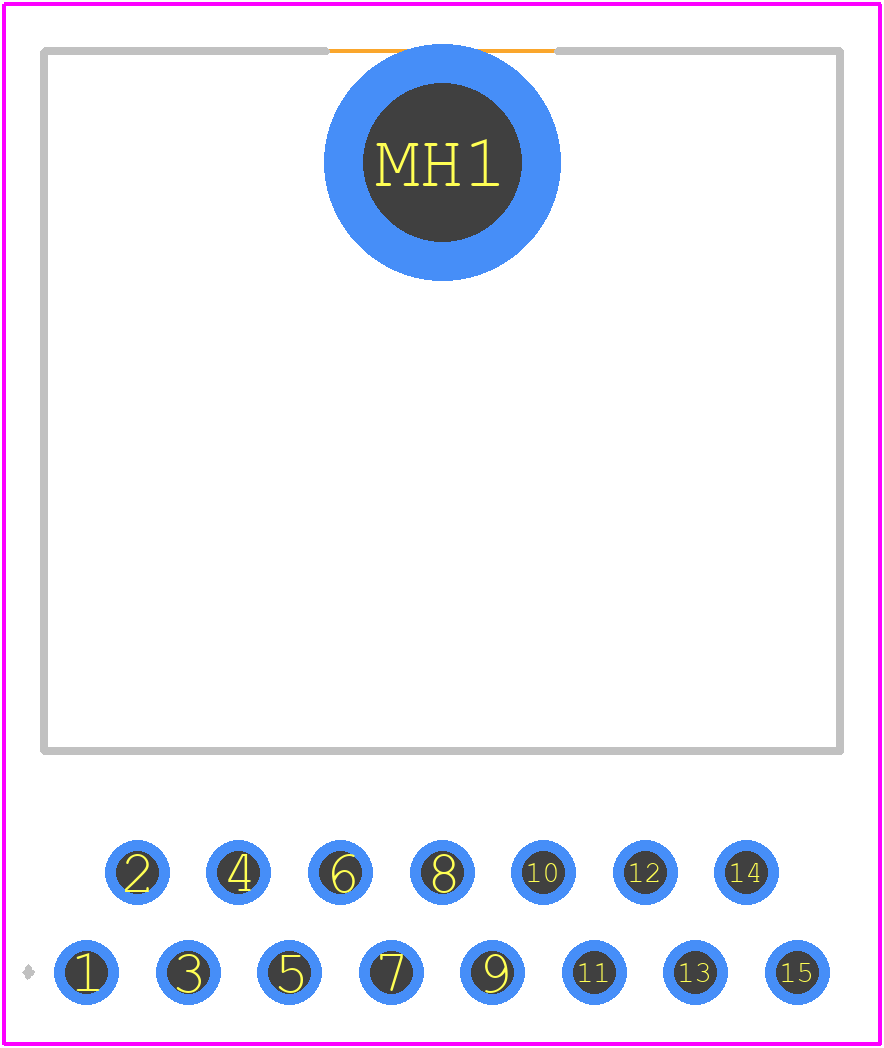

TDA7294HS - STMicroelectronics PCB footprint - Other - Other - Multiwatt15H
click to zoom
3D Models
TDA7294HS - STMicroelectronics - 3D model - Other - Multiwatt15H
click to zoom

TDA7294HS Details

  • Manufacturer Part Number:

    TDA7294HS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Pin Count:

    15

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15H,.1,.8TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    65 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7294HS Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7294HS is 40V, but it's recommended to operate it between 12V to 36V for optimal performance.
  • To prevent overheating, ensure good heat sinking, use a heat sink with a thermal resistance of 2°C/W or less, and keep the ambient temperature below 40°C. Also, avoid high power dissipation and use a thermal shutdown circuit if possible.
  • The TDA7294HS can drive loads with impedance between 2Ω and 8Ω. However, for optimal performance, it's recommended to use a load impedance of 4Ω or higher.
  • The gain of the TDA7294HS can be configured by connecting a resistor (Rg) between the gain pin (pin 3) and ground. The gain is calculated as 20 dB + 20log(Rg/1kΩ).
  • The bootstrap capacitor (Cb) is used to decouple the high-voltage power supply from the low-voltage control circuitry. It helps to reduce power supply noise and improve the amplifier's overall performance.
