Part Image

TDA7294V - STMicroelectronics

Description: 100 V, 100 W DMOS audio amplifier with mute/st-by

Download TDA7294V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

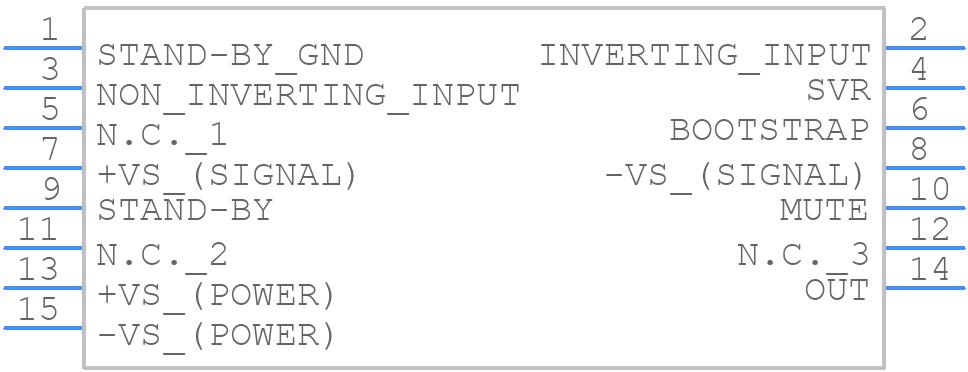

TDA7294V - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

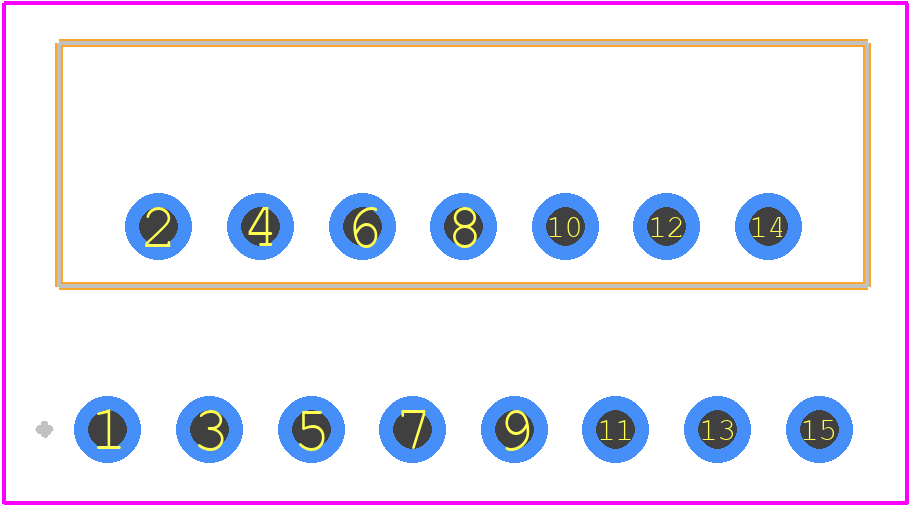

TDA7294V - STMicroelectronics PCB footprint - Other - Other - Multiwatt15V
click to zoom
3D Models
TDA7294V - STMicroelectronics - 3D model - Other - Multiwatt15V
click to zoom

TDA7294V Details

  • Manufacturer Part Number:

    TDA7294V

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Pin Count:

    15

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    100 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.2,.17TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7294V Frequently Asked Questions (FAQs)

  • The maximum power supply voltage for the TDA7294V is 40V, but it's recommended to operate it between 12V to 36V for optimal performance.
  • To prevent overheating, ensure good heat sinking, use a heat sink with a thermal resistance of 2°C/W or less, and keep the ambient temperature below 40°C. You can also use thermal shutdown protection circuits.
  • The minimum load impedance for the TDA7294V is 2 ohms, and the maximum is 8 ohms. Operating outside this range may affect the amplifier's performance and stability.
  • Yes, the TDA7294V can be used as a bridge amplifier. However, you'll need to use two devices, one for each channel, and ensure proper phasing and synchronization to avoid destructive interference.
  • To reduce noise and hum, use a well-regulated power supply, add decoupling capacitors, and ensure good grounding and shielding. You can also use noise filters and hum eliminators in the signal path.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7294V Overview

Use the download button to access the TDA7294V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA72, or try a keyword search, such as Audio/Video Amplifiers
