TDA7374BV - STMicroelectronics

Description: IC AMP AB STEREO 21W 15MULTIWATT

Download TDA7374BV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

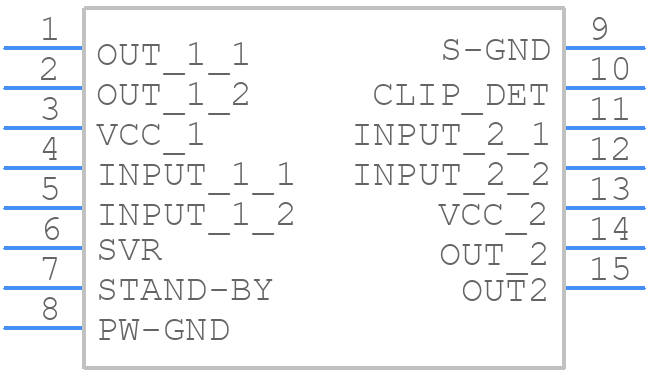

TDA7374BV - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

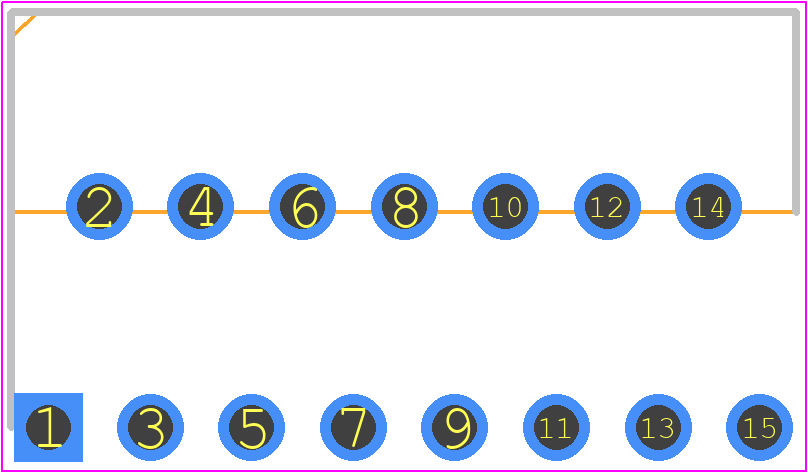

TDA7374BV - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt15 V_2021_1
click to zoom
3D Models
TDA7374BV - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt15 V_2021_1
click to zoom

TDA7374BV Details

  • Manufacturer Part Number:

    TDA7374BV

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, MULTIWATT-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • JESD-609 Code:

    e3

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    15

  • Output Power-Nom:

    21 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.2,.17TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    150 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7374BV Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7374BV involves keeping the power supply lines as short as possible, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a shielded enclosure and to keep the audio signals away from the power supply lines.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage supply, and decouple it with a 10uF capacitor to ground. Also, connect the Bypass pin to a 10uF capacitor to ground, and ensure the input signals are within the recommended voltage range.
  • The maximum power dissipation of the TDA7374BV is 2.5W. To prevent overheating, ensure good heat dissipation by using a heat sink, keeping the device away from other heat sources, and providing good airflow. Also, avoid operating the device at maximum power for extended periods.
  • Yes, the TDA7374BV can be used in a bridged amplifier configuration. To do this, connect the output of one amplifier to the input of the other, and ensure the outputs are properly phased. This will increase the power output, but be careful not to exceed the maximum power dissipation.
  • To protect the TDA7374BV from overvoltage and undervoltage conditions, use a voltage regulator to regulate the supply voltage, and add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage surges or drops.
