TDA7375AV - STMicroelectronics

Description: 2 x 37 W dual/quad power amplifier for car radio

Download TDA7375AV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

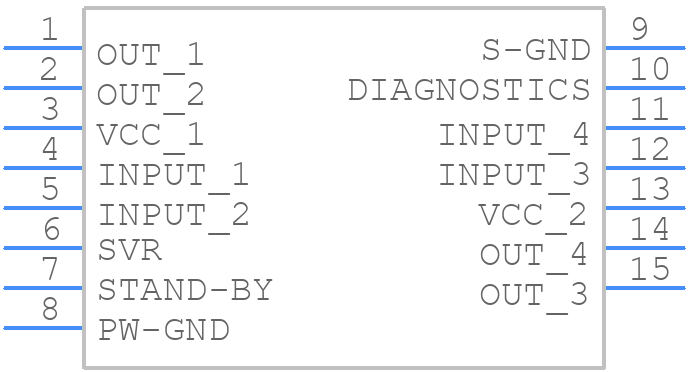

TDA7375AV - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

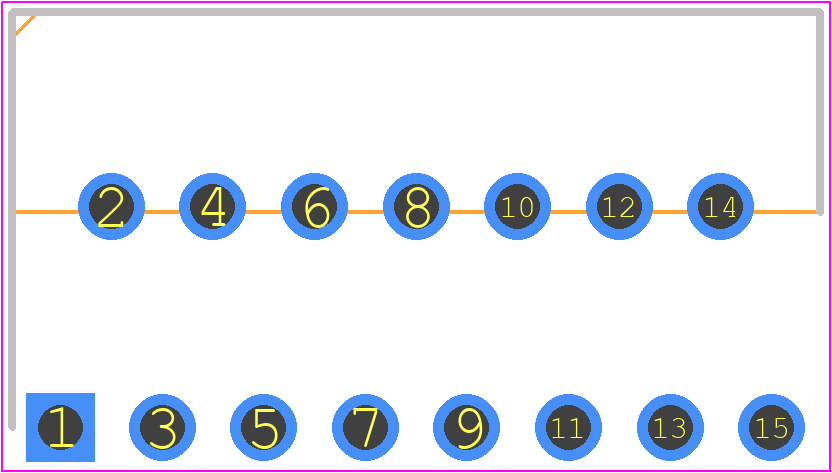

TDA7375AV - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Multiwatt15 V
click to zoom
3D Models
TDA7375AV - STMicroelectronics - 3D model - Transistor Outline, Vertical - Multiwatt15 V
click to zoom

TDA7375AV Details

  • Manufacturer Part Number:

    TDA7375AV

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT V-15

  • Pin Count:

    15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    43 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T15

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Output Power-Nom:

    43 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP15,.2,.17TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    150 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

TDA7375AV Frequently Asked Questions (FAQs)

  • The maximum power supply voltage that can be applied to the TDA7375AV is 18V. Exceeding this voltage may damage the device.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 10uF with an ESR of 0.1 ohm.
  • The maximum output current that the TDA7375AV can deliver is 3.5A. Exceeding this current may cause the device to overheat or malfunction.
  • To protect the TDA7375AV from overheating, ensure that the device is mounted on a suitable heat sink, and the ambient temperature is within the recommended operating range of -40°C to 150°C.
  • The EN (enable) pin is used to enable or disable the output voltage of the TDA7375AV. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
