TDA7375V footprint, schematic symbol and 3D model by STMicroelectronics

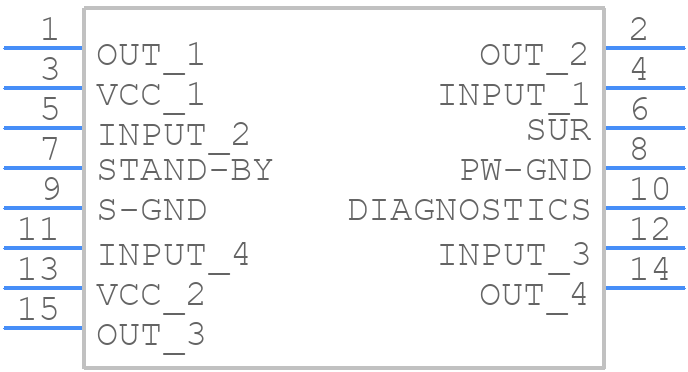

Symbol

click to zoom

PCB Footprints

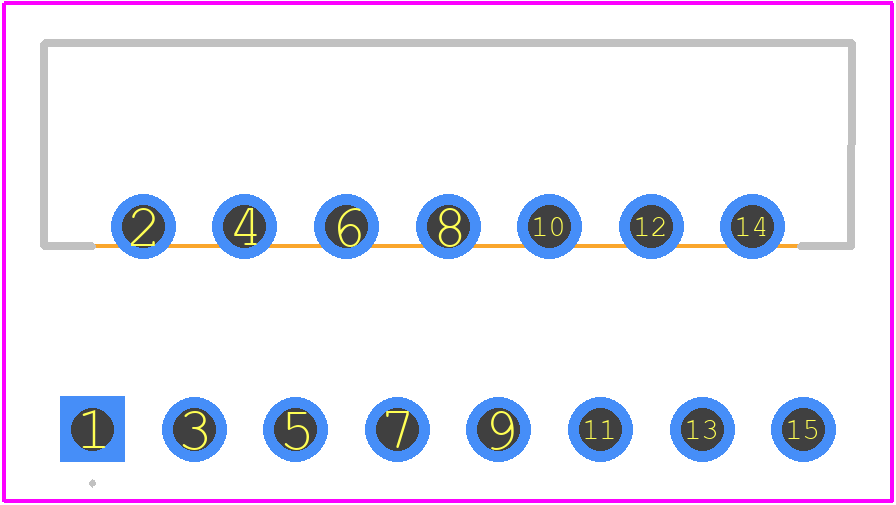

TDA7375V - STMicroelectronics PCB footprint - Other - Other - MULTIWATT 15 (Vertical)-2026-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7375V
Part Number TDA7375V
Manufacturer STMicroelectronics
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MULTIWATT 15 (Vertical)-2026-4
Released Date Feb 28, 2026
Last Modified Date Mar 1, 2026 11:15 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7375V Details

Manufacturer Part Number:
TDA7375V
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
ZFM
Package Description:
ROHS COMPLIANT, MULTIWATT V-15
Pin Count:
15
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
STMicroelectronics
YTEOL:
5
Bandwidth-Nom:
22 kHz
Consumer IC Type:
CLASS AB AUDIO AMPLIFIER
Gain:
20 dB
Harmonic Distortion:
10%
JESD-30 Code:
R-PZIP-T15
JESD-609 Code:
e3
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
15
Output Power-Nom:
40 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
ZIP
Package Equivalence Code:
ZIP15,.2,.17TB
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Supply Current-Max:
150 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
8 V
Surface Mount:
NO
Technology:
BIPOLAR
Terminal Finish:
Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.27 mm
Terminal Position:
ZIG-ZAG

TDA7375V Frequently Asked Questions (FAQs)

A good PCB layout for the TDA7375V involves keeping the power supply lines as short as possible, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a shielded enclosure and to keep the audio signals away from the power supply lines.
To optimize the gain structure of the TDA7375V, it's recommended to set the gain of each stage to achieve the desired output level while minimizing noise and distortion. A good starting point is to set the gain of the input stage to around 20 dB, the gain of the tone control stage to around 10 dB, and the gain of the output stage to around 10 dB. Adjust the gain of each stage based on the specific application and desired sound quality.
A good power supply decoupling scheme for the TDA7375V involves using a combination of ceramic and electrolytic capacitors. A 100 nF ceramic capacitor should be placed close to the IC, and a 10 uF electrolytic capacitor should be placed near the power supply input. This scheme helps to filter out high-frequency noise and ensure stable operation.
To protect the TDA7375V from overheating, it's recommended to ensure good airflow around the IC, use a heat sink if necessary, and avoid operating the IC at maximum power for extended periods. Additionally, the IC should be mounted on a PCB with a good thermal conductivity, and the power supply voltage should be kept within the recommended range.
A good mute circuitry for the TDA7375V involves using a series resistor and capacitor to ground on the input pins, and a shunt resistor and capacitor to ground on the output pins. This scheme helps to quickly mute the audio signal when the mute pin is activated, and to prevent clicks and pops during mute transitions.
