TDA7376PD - STMicroelectronics

Description: 2 x 35 W power amplifier for car radio

Download TDA7376PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

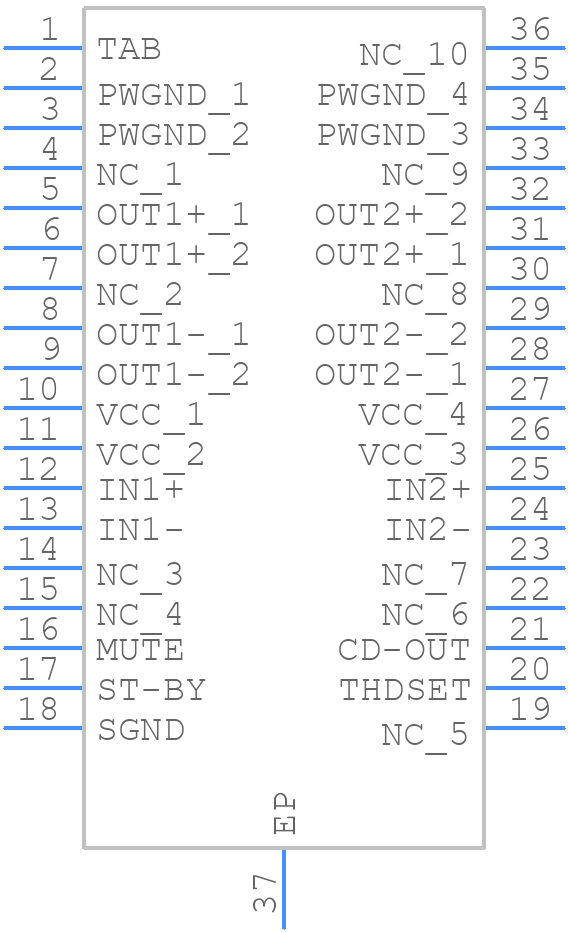

TDA7376PD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

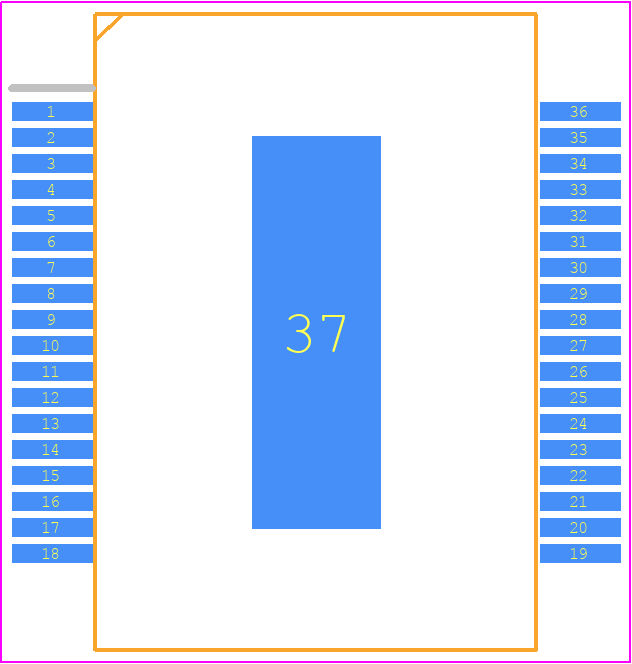

TDA7376PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36 (SLUG UP)
click to zoom
3D Models
TDA7376PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36 (SLUG UP)
click to zoom

TDA7376PD Details

  • Manufacturer Part Number:

    TDA7376PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    33 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Power-Nom:

    37 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.43 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

TDA7376PD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. STMicroelectronics provides a component selection guide in the application note AN2552, which includes recommendations for component values and types.
  • The maximum power dissipation of the TDA7376PD is dependent on the operating conditions and the thermal management of the PCB. According to the datasheet, the maximum power dissipation is 20W, but this can be increased with proper thermal design and heat sinking.
  • The TDA7376PD has built-in overvoltage and overcurrent protection, but additional protection measures can be taken to ensure reliability. This includes adding external voltage regulators, fuses, and current sensing resistors to prevent damage from voltage surges and overcurrent conditions.
  • The recommended operating voltage range for the TDA7376PD is 12V to 18V, but the device can operate from 9V to 20V with reduced performance. It's essential to ensure that the operating voltage is within the recommended range to maintain optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7376PD Overview

Use the download button to access the TDA7376PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA73, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
