TDA7381 - STMicroelectronics

Description: 4 x 25 W quad bridge car radio amplifier

Download TDA7381 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

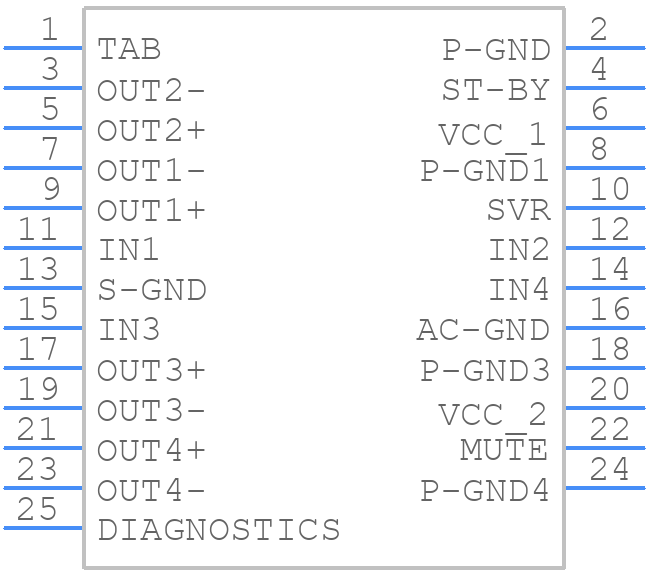

Symbol
TDA7381 - STMicroelectronics - PCB symbol
click to zoom

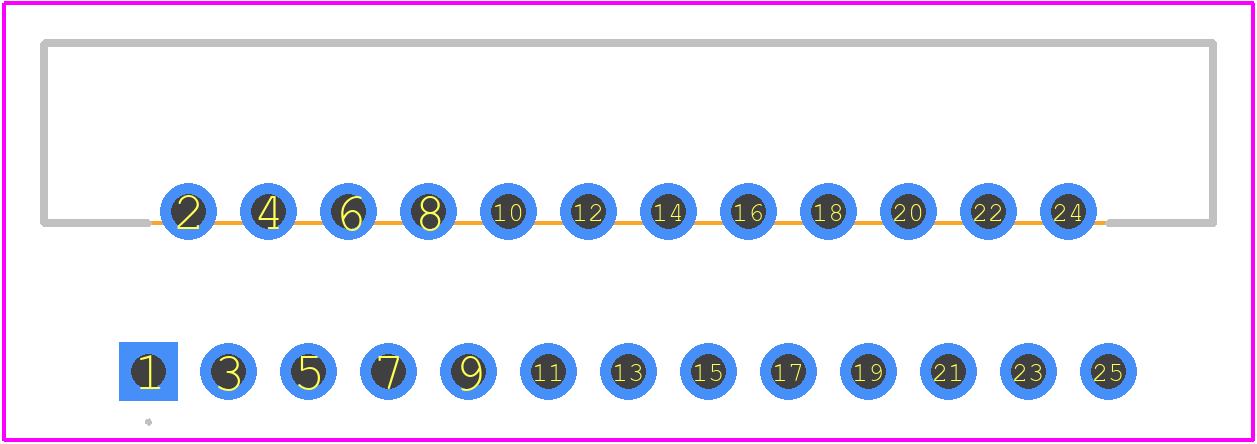

PCB Footprints
TDA7381 - STMicroelectronics PCB footprint - Other - Other - TDA7381
click to zoom
3D Models
TDA7381 - STMicroelectronics - 3D model - Other - TDA7381
click to zoom

TDA7381 Details

  • Manufacturer Part Number:

    TDA7381

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T25

  • JESD-609 Code:

    e3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Output Power-Nom:

    18 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max (Vsup):

    14.4 V

  • Supply Voltage-Min (Vsup):

    14.4 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

TDA7381 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7381 involves keeping the power supply lines as short as possible, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a shielded enclosure and to keep the audio signals away from the power supply lines.
  • The input and output capacitors should be chosen based on the frequency response and impedance of the circuit. A good starting point is to use capacitors with a value of 2.2uF to 4.7uF for the input and output stages. The capacitor type should be a low-ESR ceramic or film capacitor.
  • The maximum power dissipation of the TDA7381 is dependent on the ambient temperature and the thermal resistance of the package. The maximum power dissipation can be calculated using the formula: Pd = (TJ - TA) / θJA, where Pd is the power dissipation, TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance.
  • The TDA7381 has a built-in overvoltage protection circuit, but it's still recommended to add external protection circuitry to protect the device from overvoltage and undervoltage conditions. A voltage regulator or a voltage supervisor can be used to regulate the input voltage and prevent damage to the device.
  • The recommended operating voltage range for the TDA7381 is 9V to 18V, with a typical voltage of 12V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7381 Overview

Use the download button to access the TDA7381 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA73, or try a keyword search, such as Audio/Video Amplifiers
