TDA7385 - STMicroelectronics

Description: Audio Amplifiers 4X30W Quad Brdg Amp

Download TDA7385 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

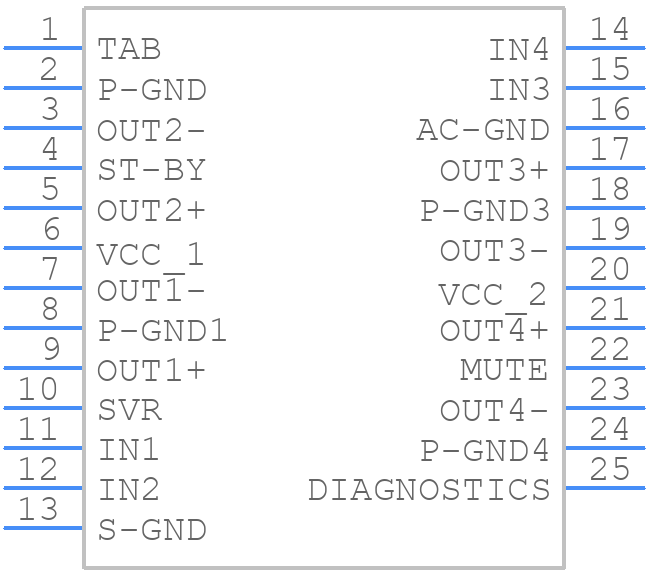

TDA7385 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

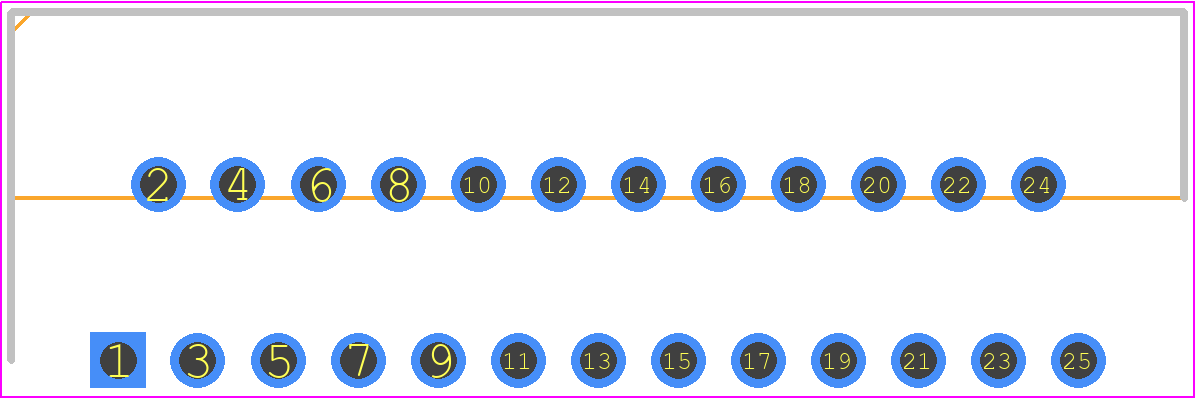

TDA7385 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Flexiwatt25 (vertical)_1
click to zoom
3D Models
TDA7385 - STMicroelectronics - 3D model - Transistor Outline, Vertical - Flexiwatt25 (vertical)_1
click to zoom

TDA7385 Details

  • Manufacturer Part Number:

    TDA7385

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZIP

  • Package Description:

    FLEXIWATT-25

  • Pin Count:

    25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T25

  • JESD-609 Code:

    e3

  • Length:

    29.23 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Output Power-Nom:

    35 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    19.37 mm

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max (Vsup):

    14.4 V

  • Supply Voltage-Min (Vsup):

    14.4 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

TDA7385 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7385 involves keeping the power supply lines (VIN and VCC) separate from the signal lines, using a star connection for the power supply, and placing the decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The output filter components (L, C, and R) should be chosen based on the desired cutoff frequency, impedance, and attenuation. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements and measurement results.
  • The maximum power dissipation of the TDA7385 depends on the package type and the ambient temperature. For the DFN8 package, the maximum power dissipation is 1.4 W at 70°C, and for the SO8 package, it is 1.1 W at 70°C. The power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + VIN x IQ, where IQ is the quiescent current.
  • To ensure the stability of the TDA7385, it is essential to follow the recommended layout and component selection guidelines, use a sufficient output capacitor value, and ensure that the input voltage is within the recommended range. Additionally, the output voltage should be monitored to prevent overvoltage or undervoltage conditions.
  • The TDA7385 is rated for operation up to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device can be used in high-temperature environments, but the power dissipation should be derated accordingly, and the thermal management should be ensured through proper heat sinking and cooling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7385 Overview

Use the download button to access the TDA7385 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA73, or try a keyword search, such as Audio/Video Amplifiers
