TDA7387EP - STMicroelectronics

Description: 4 x 41 W quad bridge car radio amplifier

Download TDA7387EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

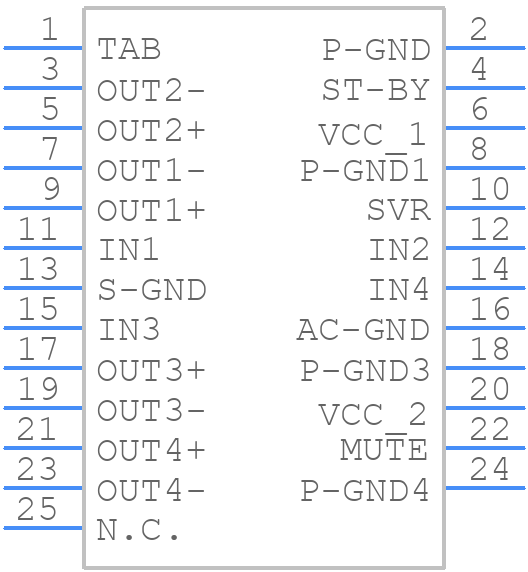

TDA7387EP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

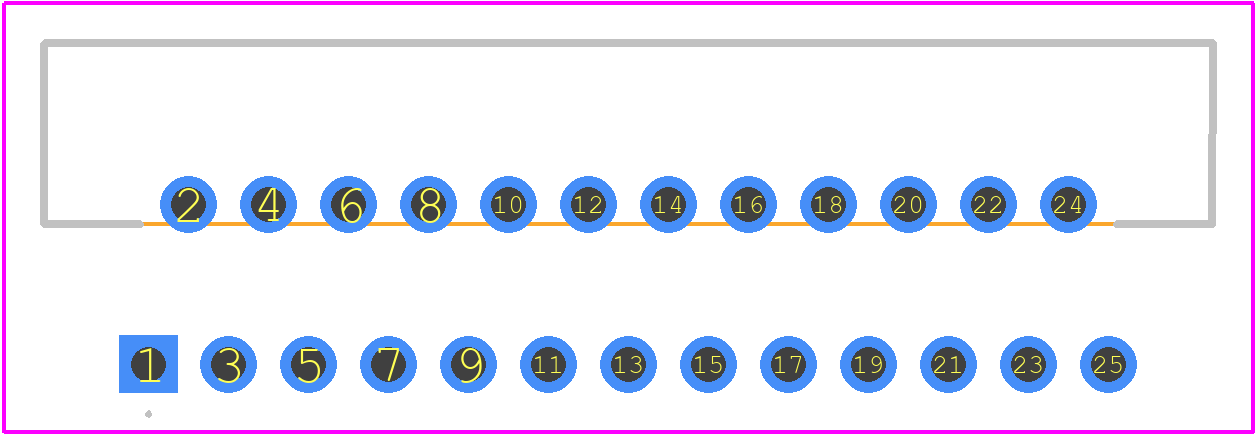

TDA7387EP - STMicroelectronics PCB footprint - Other - Other - Flexiwatt25 vertical, exposed pad
click to zoom
3D Models
TDA7387EP - STMicroelectronics - 3D model - Other - Flexiwatt25 vertical, exposed pad
click to zoom

TDA7387EP Details

  • Manufacturer Part Number:

    TDA7387EP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZFM-T25

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Power-Nom:

    22 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TDA7387EP Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7387EP is 2.5W, but it can be increased to 4W with proper heat sinking.
  • To ensure stability, make sure to follow the recommended PCB layout and component placement guidelines, and use a suitable output capacitor (e.g., 220uF) to filter the output voltage.
  • The minimum input voltage required for the TDA7387EP to operate is 6.5V, but it's recommended to use a minimum of 8V for optimal performance.
  • Yes, the TDA7387EP can be used in a bridged amplifier configuration, but it requires a specific PCB layout and component selection to ensure proper operation and thermal management.
  • To protect the TDA7387EP from overheating, ensure good thermal conductivity between the device and the heat sink, and consider using a thermal shutdown circuit or a temperature sensor to monitor the device temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7387EP Overview

Use the download button to access the TDA7387EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA73, or try a keyword search, such as Audio/Video Amplifiers
