TDA7387EPAG - STMicroelectronics

Description: Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)

Download TDA7387EPAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

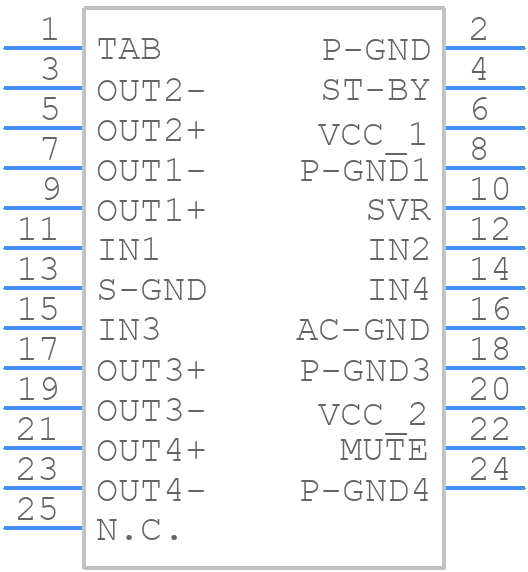

TDA7387EPAG - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

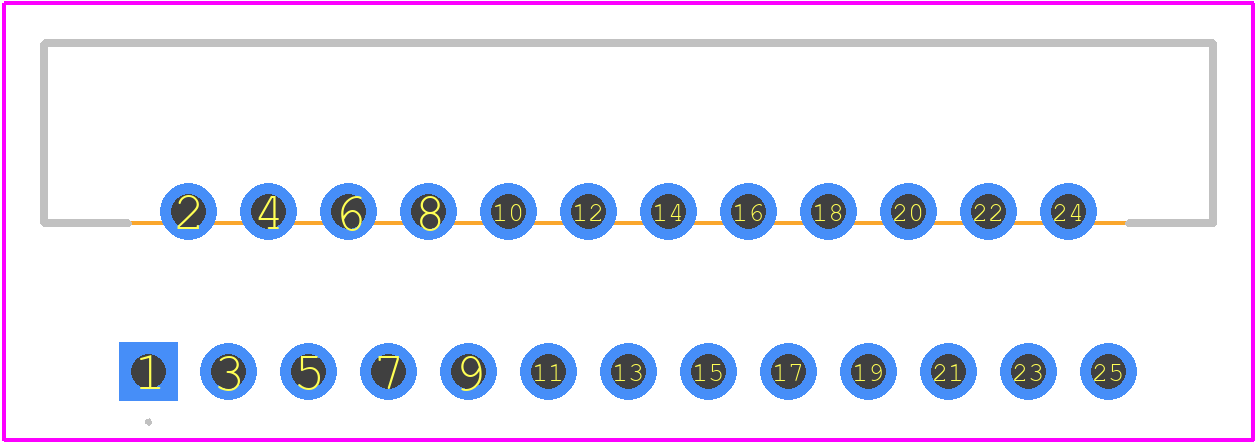

TDA7387EPAG - STMicroelectronics PCB footprint - Other - Other - 25-Flexiwatt,Formed Leads
click to zoom
3D Models
TDA7387EPAG - STMicroelectronics - 3D model - Other - 25-Flexiwatt,Formed Leads
click to zoom

TDA7387EPAG Details

  • Manufacturer Part Number:

    TDA7387EPAG

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZFM-T25

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    22 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

TDA7387EPAG Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and requirements. STMicroelectronics provides a component selection guide in the application note AN2552, which includes formulas and guidelines for selecting the correct components.
  • The maximum power dissipation of the TDA7387EPAG depends on the operating conditions and the thermal management of the PCB. According to the datasheet, the maximum power dissipation is 2.5W, but this can be increased with proper thermal management and heat sinking.
  • The TDA7387EPAG has built-in overvoltage and overcurrent protection, but additional protection measures can be taken to ensure the device's reliability. This includes adding external voltage regulators, fuses, and current limiting resistors to prevent damage from voltage spikes and excessive current.
  • The typical application circuit for the TDA7387EPAG is a Class-D audio amplifier with a stereo bridge-tied load (BTL) configuration. This circuit is shown in the datasheet and application notes, and includes the necessary components for a complete audio amplifier system.
