TDA7391LVPDTR - STMicroelectronics

Description: 40 W bridge car radio amplifier with low voltage operation

Download TDA7391LVPDTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

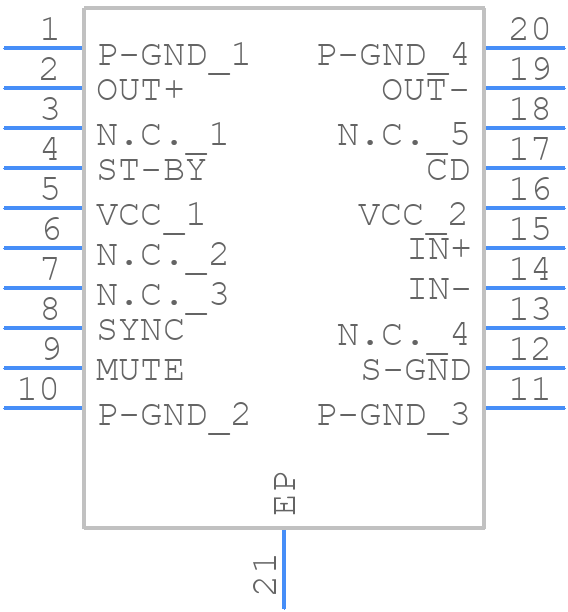

TDA7391LVPDTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

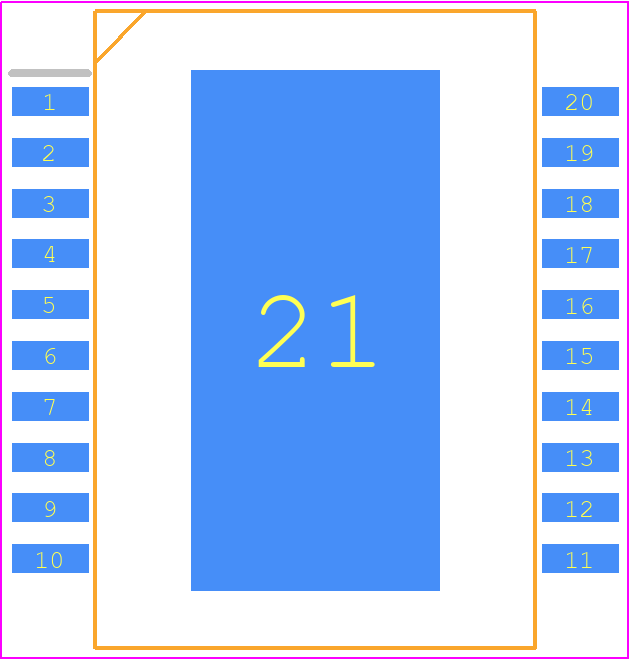

TDA7391LVPDTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO_-20 (slug-down) _
click to zoom
3D Models
TDA7391LVPDTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO_-20 (slug-down) _
click to zoom

TDA7391LVPDTR Details

  • Manufacturer Part Number:

    TDA7391LVPDTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSO-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    15.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Power-Nom:

    32 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TDA7391LVPDTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 2x the input voltage. However, it's recommended to consult the application note AN2552 for more detailed guidance on input capacitor selection.
  • The maximum ambient temperature for the TDA7391LVPDTR is 85°C, but it's recommended to derate the device's power dissipation according to the thermal derating curve provided in the datasheet to ensure reliable operation.
  • Yes, the TDA7391LVPDTR is qualified according to the AEC-Q100 standard for automotive applications and is suitable for high-reliability applications. However, it's recommended to consult the device's qualification report and to perform additional testing and validation according to the specific application requirements.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2552, which includes a step-by-step approach to identify and resolve common issues with the TDA7391LVPDTR. Additionally, it's recommended to consult the device's datasheet and to contact STMicroelectronics' technical support for further assistance.
