TDA7391LVPDUTR - STMicroelectronics

Description: 40 W bridge car radio amplifier with low voltage operation

Download TDA7391LVPDUTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

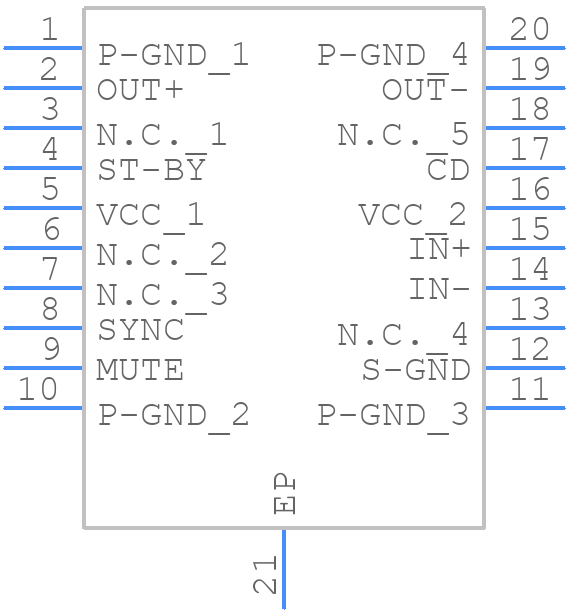

TDA7391LVPDUTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7391LVPDUTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20 (slug-up)
click to zoom
3D Models
TDA7391LVPDUTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20 (slug-up)
click to zoom

TDA7391LVPDUTR Details

  • Manufacturer Part Number:

    TDA7391LVPDUTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    POWERSO-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    15.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Output Power-Nom:

    32 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TDA7391LVPDUTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 2x the input voltage. However, it's recommended to consult the application note AN2552 for more detailed guidance on input capacitor selection.
  • The maximum junction temperature (Tj) for the TDA7391LVPDUTR is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent thermal shutdown and ensure reliability.
  • While the TDA7391LVPDUTR can operate up to 150°C, it's not recommended for use in high-temperature environments above 125°C without proper thermal management. Consult the datasheet and application notes for guidance on thermal design and derating factors.
  • Common issues with the TDA7391LVPDUTR can be caused by improper PCB layout, incorrect component values, or inadequate thermal management. Consult the application note AN2552 and the datasheet for troubleshooting guidelines, and consider using simulation tools or seeking support from STMicroelectronics or a qualified engineer.
