- Part Number TDA7393
- Manufacturer STMicroelectronics
- Pin Count 15
- Part Category Transistor
- Package Category Transistor Outline, Vertical

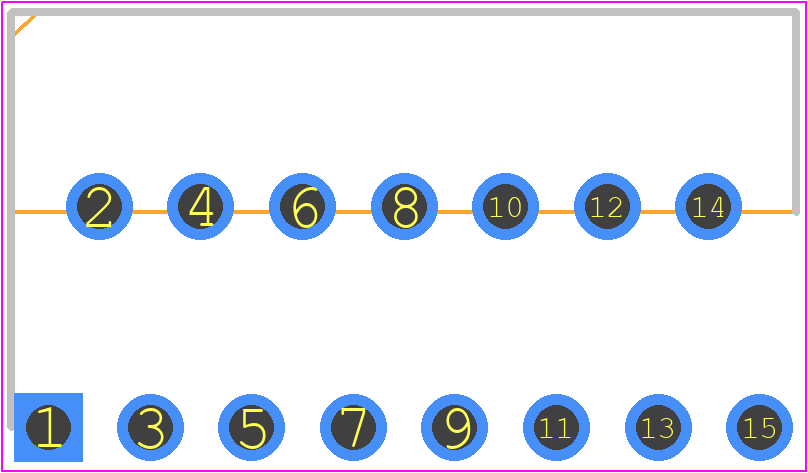

- Footprint Name Transistor Outline, Vertical - Multiwatt15 V_2021_1
- Released Date Dec 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7393 Details
-
Manufacturer Part Number:
TDA7393
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
ZFM
-
Package Description:
MULTIWATT V-15
-
Pin Count:
15
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Bandwidth-Nom:
20 kHz
TDA7393 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first apply the power supply voltage (VCC) and then the analog supply voltage (VCCA). This ensures that the internal voltage regulators are properly initialized.
-
The TDA7393 can be configured for different audio applications by setting the appropriate registers and pins. Refer to the application notes and evaluation boards provided by STMicroelectronics for specific configuration examples.
-
The TDA7393 can handle a maximum power of 20W per channel into a 4Ω load. However, this may vary depending on the specific application and thermal design.
-
To troubleshoot issues with the TDA7393, check the power supply voltage, analog supply voltage, and output stage configuration. Also, ensure that the device is properly decoupled and that the PCB layout is optimized for audio performance.
-
Yes, the TDA7393 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, power supply, and thermal design.
Trust Checks
System Verified
TDA7393 Overview

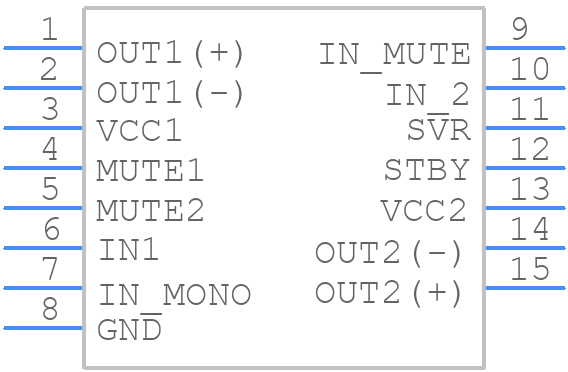

Use the download button to access the TDA7393 schematic symbol, PCB footprint, and 3D model.
