TDA7396 - STMicroelectronics

Description: 45W/2OHM bridge car radio amplifier with diagnostic facility 18V,100mA,-40 to 150 °C

Download TDA7396 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

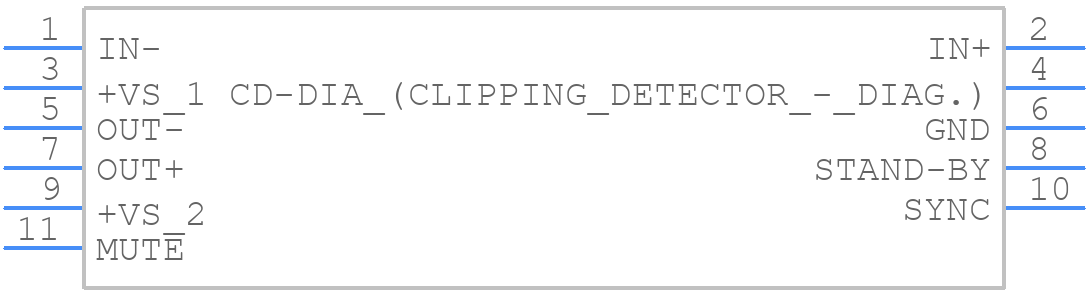

Symbol
TDA7396 - STMicroelectronics - PCB symbol
click to zoom

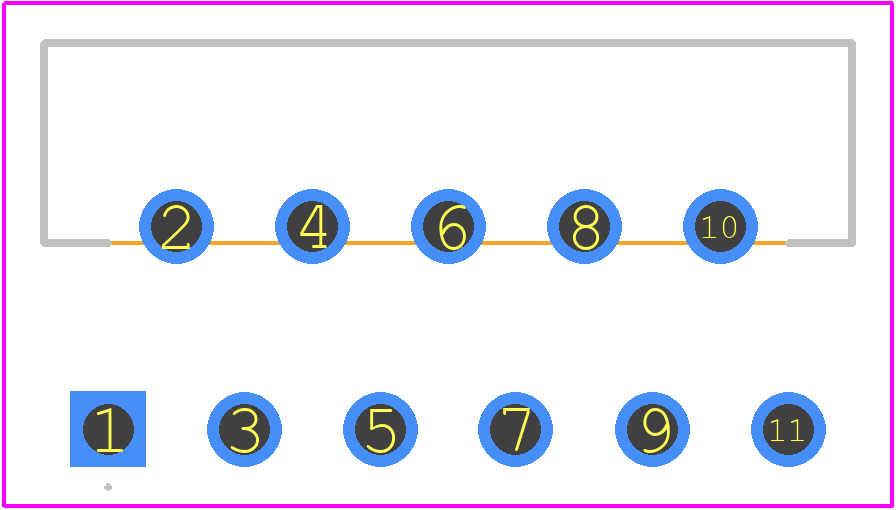

PCB Footprints
TDA7396 - STMicroelectronics PCB footprint - Other - Other - TDA7396-6
click to zoom
3D Models
TDA7396 - STMicroelectronics - 3D model - Other - TDA7396-6
click to zoom

TDA7396 Details

  • Manufacturer Part Number:

    TDA7396

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    MULTIWATT-11

  • Pin Count:

    11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    26 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T11

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    11

  • Output Power-Nom:

    45 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP11,.2,.17,67TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.7 mm

  • Terminal Position:

    ZIG-ZAG

TDA7396 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7396 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
  • To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values (e.g., 100nF, 1uF, and 10uF) placed close to the device's power pins. This helps to filter out high-frequency noise and ensure stable operation.
  • To manage thermal dissipation, use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device. Additionally, consider using thermal interface materials (TIMs) to improve heat transfer between the device and heat sink.
  • To troubleshoot audio output issues, check the device's clock and data signals, ensure proper power supply decoupling, and verify that the audio codec is properly configured. Also, check for any signs of overheating, and verify that the output stage is properly biased.
  • While the TDA7396 is specified for 5V operation, it can operate with a supply voltage range of 4.5V to 5.5V. However, be aware that operating outside the recommended voltage range may affect the device's performance, power consumption, and reliability.
