TDA7491MV - STMicroelectronics

Description: 25 W mono BTL class-D audio amplifier

Download TDA7491MV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

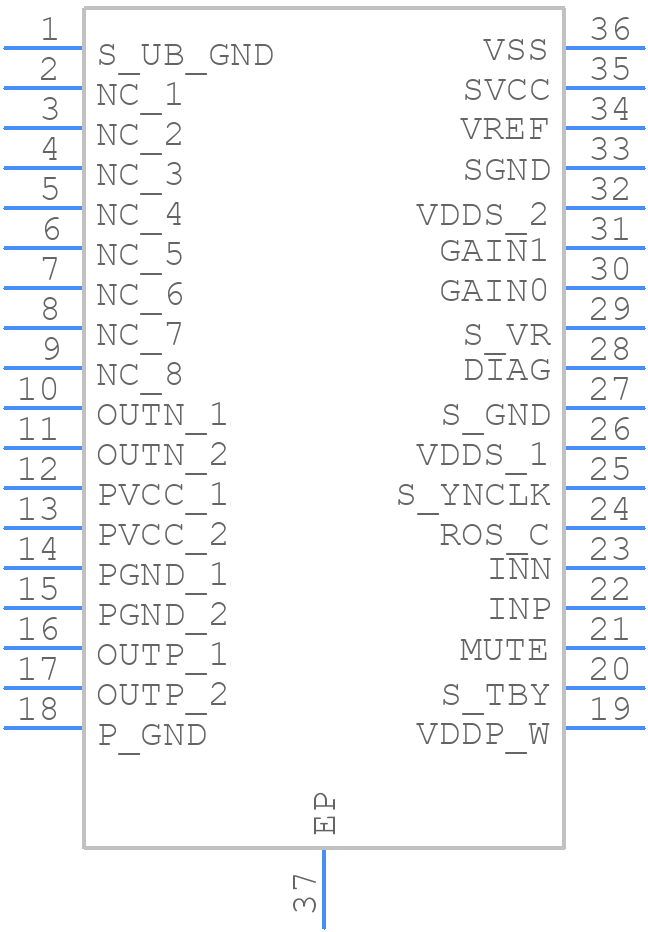

Symbol
TDA7491MV - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7491MV - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD dimensions
click to zoom
3D Models
TDA7491MV - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD dimensions
click to zoom

TDA7491MV Details

  • Manufacturer Part Number:

    TDA7491MV

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    32 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TDA7491MV Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • To prevent overheating, ensure good thermal dissipation by using a heat sink, keeping the device away from heat sources, and providing adequate airflow. Also, monitor the device's temperature using the thermal shutdown feature and take corrective action if it exceeds the maximum operating temperature.
  • While the datasheet specifies a maximum supply voltage of 38V, it's recommended to limit the voltage to 36V to ensure reliable operation and prevent damage to the device.
  • Yes, the TDA7491MV can be used in a bridged configuration to increase the output power. However, this requires careful design and layout considerations to ensure proper operation and prevent damage to the device.
  • Start by checking the power supply voltage, input signals, and output connections. Use an oscilloscope to verify the output waveform and check for distortion or clipping. Also, consult the application note AN2863 for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7491MV Overview

Use the download button to access the TDA7491MV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Audio/Video Amplifiers
