TDA7491P13TR - STMicroelectronics

Description: 2 x 10-watt dual BTL class-D audio amplifier

Download TDA7491P13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

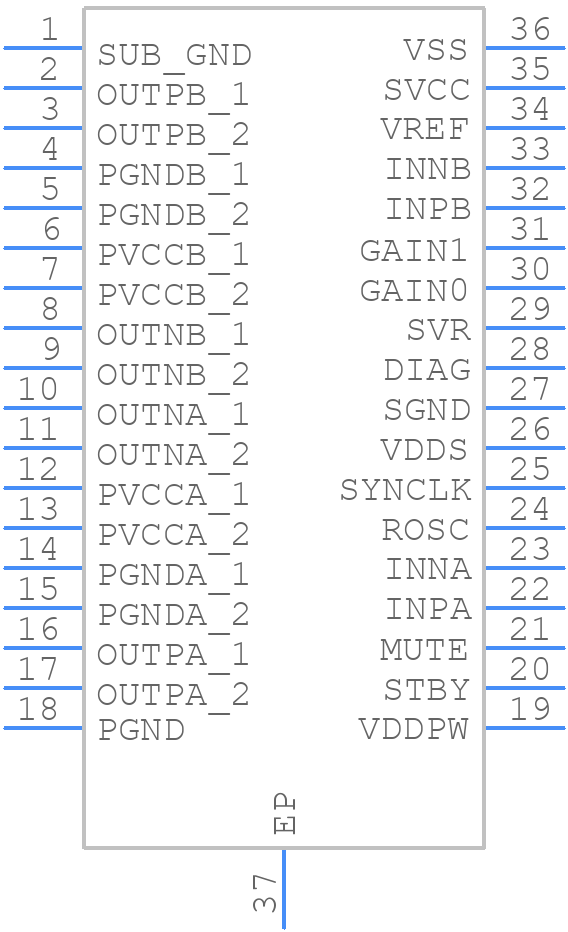

Symbol
TDA7491P13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7491P13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO36_1
click to zoom
3D Models
TDA7491P13TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO36_1
click to zoom

TDA7491P13TR Details

  • Manufacturer Part Number:

    TDA7491P13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    32 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    10 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA7491P13TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7491P13TR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing critical signals under the device, and keep the PCB layer stack-up symmetrical to minimize thermal gradients.
  • For optimal output filter design, use a 2nd-order LC filter with a cutoff frequency around 150 kHz to 200 kHz. Choose inductors with low DCR and high Q-factor, and capacitors with low ESR. Ensure the filter components are placed close to the device to minimize parasitic inductance and capacitance.
  • When selecting the bootstrap capacitor (CBOOT) value, consider the device's operating frequency, output power, and voltage supply. A larger CBOOT value (e.g., 10nF to 22nF) is recommended for higher output power and frequency applications, while a smaller value (e.g., 1nF to 4.7nF) is suitable for lower power and frequency applications.
  • To ensure the TDA7491P13TR operates within its safe operating area (SOA), monitor the device's junction temperature (TJ) and ensure it stays below the maximum rated value (150°C). Also, keep the output power and voltage within the recommended specifications, and avoid operating the device in a high-temperature environment.
  • For optimal decoupling, use a combination of ceramic capacitors with values ranging from 100nF to 10uF, placed close to the device's power pins. Place a 100nF capacitor near the VIN pin, and a 1uF to 10uF capacitor near the VCC pin. Ensure the capacitors are connected to a low-impedance ground plane to minimize noise and oscillations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7491P13TR Overview

Use the download button to access the TDA7491P13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Audio/Video Amplifiers
