TDA749213TR - STMicroelectronics

Description: 50 W + 50 W dual BTL class-D audio amplifier

Download TDA749213TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

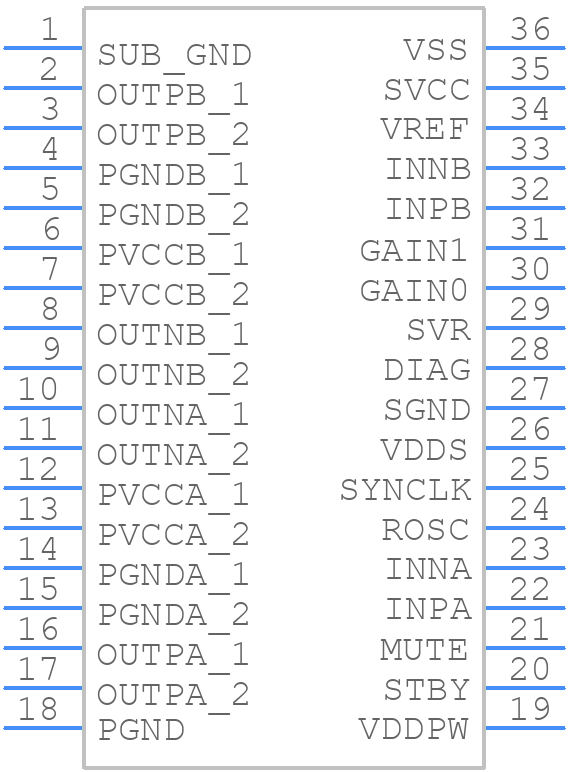

TDA749213TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA749213TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPU_2022
click to zoom
3D Models
TDA749213TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPU_2022
click to zoom

TDA749213TR Details

  • Manufacturer Part Number:

    TDA749213TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    50 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TDA749213TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power supply pins (VP and VN) to ensure stable operation.
  • To minimize electromagnetic interference (EMI) and ensure optimal performance, it is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Additionally, place the amplifier IC close to the speaker connectors and use short, direct traces for the audio signals.
  • The maximum power dissipation of the TDA749213TR is 30W, assuming a junction temperature (TJ) of 150°C. However, this value can be derated based on the ambient temperature and the thermal resistance of the PCB and heat sink.
  • Yes, the TDA749213TR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the power supply, speaker impedance, and thermal management to avoid overheating and ensure reliable operation.
  • To protect the TDA749213TR from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator or a voltage supervisor IC to monitor the power supply voltage and reset the amplifier IC if it falls outside the recommended operating range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA749213TR Overview

Use the download button to access the TDA749213TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Audio/Video Amplifiers
