TDA7492ETR - STMicroelectronics

Description: 79 W + 79 W dual BTL class-D audio amplifier

Download TDA7492ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

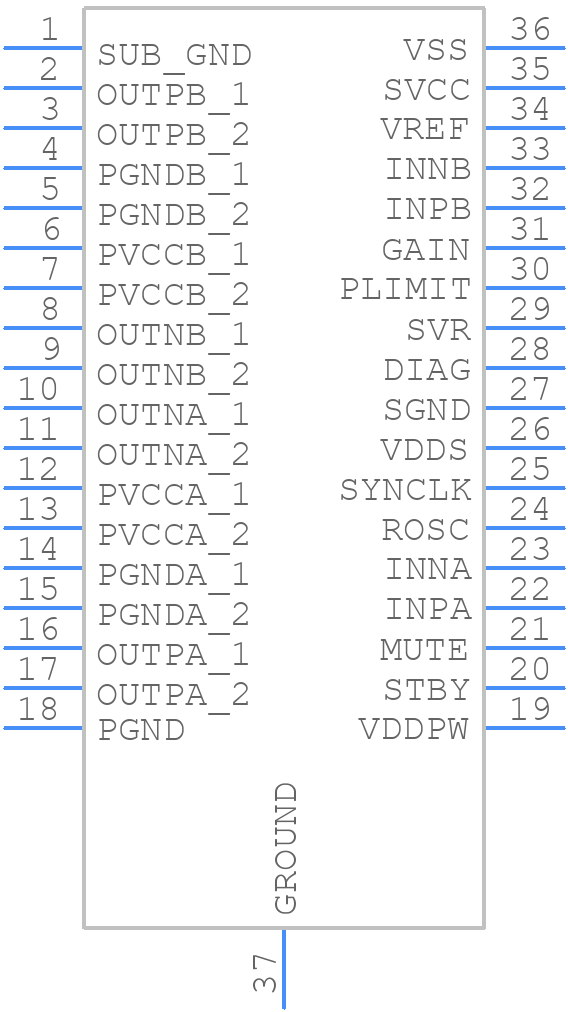

Symbol
TDA7492ETR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7492ETR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPU package mechanical data
click to zoom
3D Models
TDA7492ETR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPU package mechanical data
click to zoom

TDA7492ETR Details

  • Manufacturer Part Number:

    TDA7492ETR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    Output Power is 110W incase of Parallel BTL (mono) application

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    32.8 dB

  • Harmonic Distortion:

    0.04%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    57 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA7492ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7492ETR involves keeping the audio signal traces away from the power supply and ground planes, using a star-grounding configuration, and placing the device close to the power supply decoupling capacitors.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pad on the underside of the package. Also, minimize the power dissipation by optimizing the output power and supply voltage.
  • The recommended input capacitor value is 220nF to 470nF, depending on the input voltage and frequency. A larger capacitor value can help filter out high-frequency noise, but may increase the startup time.
  • Use a voltage regulator or a voltage supervisor to regulate the supply voltage and prevent overvoltage conditions. For undervoltage protection, use a voltage supervisor or a reset IC to reset the device when the supply voltage falls below a certain threshold.
  • The maximum allowed output power for the TDA7492ETR is 25W per channel into a 4Ω load, but this can be limited by the thermal performance and power supply voltage. Always check the device's thermal and electrical specifications to ensure safe operation.
