TDA7492MV - STMicroelectronics

Description: 50 W mono BTL class-D audio amplifier

Download TDA7492MV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

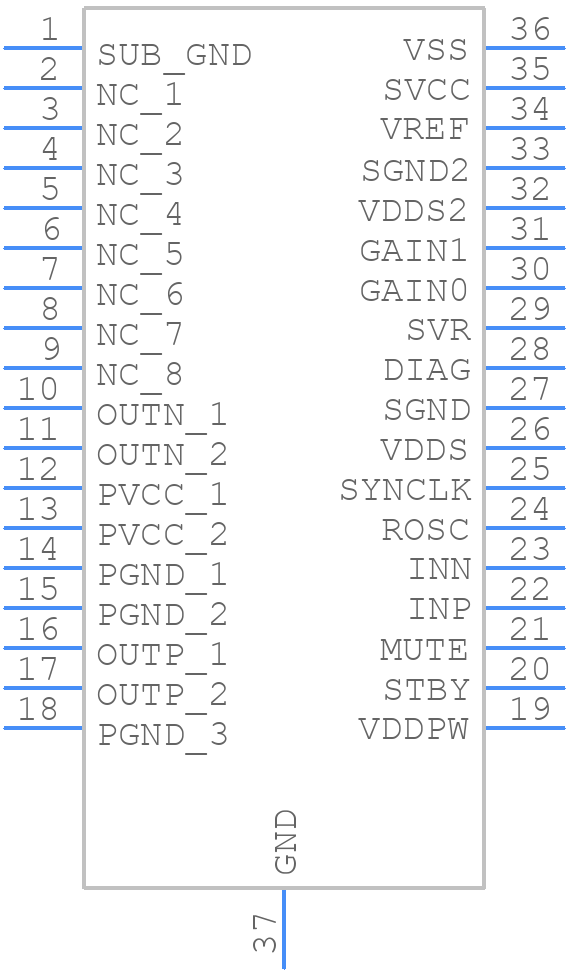

Symbol
TDA7492MV - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7492MV - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD
click to zoom
3D Models
TDA7492MV - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD
click to zoom

TDA7492MV Details

  • Manufacturer Part Number:

    TDA7492MV

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    33.6 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    50 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TDA7492MV Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The TDA7492MV has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the application. A voltage supervisor IC can be used to monitor the supply voltage and reset the TDA7492MV if it falls outside the recommended operating range.
  • The TDA7492MV can deliver up to 25W per channel into a 4-ohm load, but this depends on the supply voltage and the ambient temperature. Refer to the power derating curves in the datasheet to determine the maximum allowed output power for a specific application.
  • The TDA7492MV can be configured for mono or BTL operation by connecting the appropriate pins and setting the MODE pin accordingly. Refer to the datasheet and application note AN2863 for detailed configuration guidelines and schematics.
  • The recommended heatsink design for the TDA7492MV involves using a thermal interface material (TIM) and a heatsink with a thermal resistance of less than 2°C/W. The heatsink should be designed to provide adequate airflow and should be mounted using screws or a thermal adhesive to ensure good thermal contact.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7492MV Overview

Use the download button to access the TDA7492MV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74, or try a keyword search, such as Audio/Video Amplifiers
