- Part Number TDA7492P
- Manufacturer STMicroelectronics
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSSO-36 EPD_2020
- Released Date Oct 28, 2020
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7492P Details
-
Manufacturer Part Number:
TDA7492P
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SSOP
-
Package Description:
ROHS COMPLIANT, SSOP-36
-
Pin Count:
36
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA7492P Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, both connected as close as possible to the power supply pins (VP and VN) to ensure stable operation.
-
The gain of the TDA7492P can be configured by connecting a resistor (Rg) between the gain pin (GAIN) and ground. The gain is calculated as 20 dB + (Rg/1.2 kΩ). For example, a 1 kΩ resistor sets the gain to 23 dB.
-
The maximum power dissipation of the TDA7492P is 30W. However, this value can be affected by the ambient temperature, PCB design, and heat sink used. It's essential to perform thermal calculations to ensure the device operates within its safe operating area.
-
Yes, the TDA7492P can be used in a bridged configuration to increase the output power. In this configuration, two devices are used, one for each channel, with the outputs connected in anti-phase. This configuration can deliver up to 300W of output power.
-
To protect the TDA7492P from overheating, it's essential to provide a suitable heat sink, ensure good airflow, and monitor the device's temperature using the thermal shutdown feature (TSD). The TSD feature will shut down the device if the junction temperature exceeds 150°C.
Trust Checks
Expert Contribution
System Verified
Community Approved
TDA7492P Overview

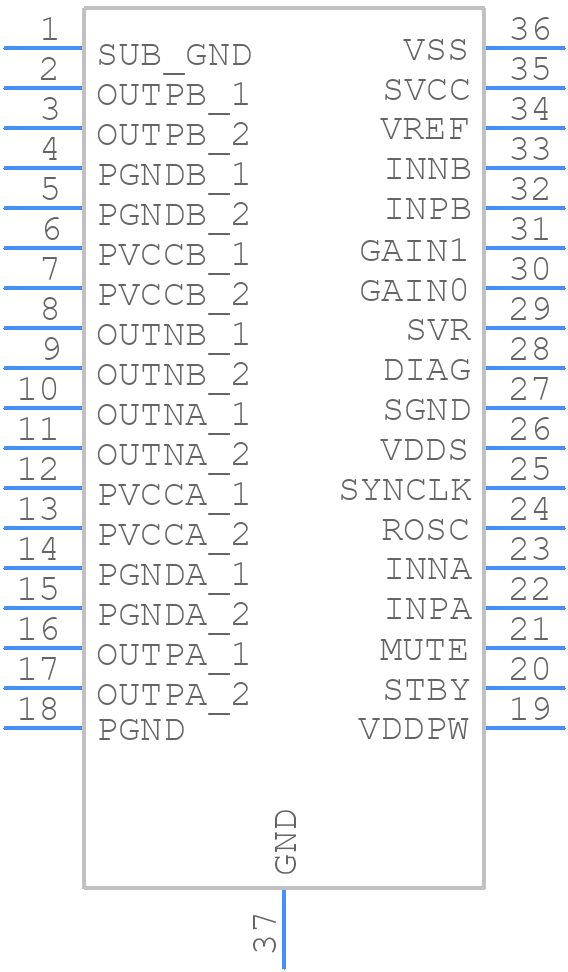

Use the download button to access the TDA7492P schematic symbol, PCB footprint, and 3D model.
