TDA7492PE - STMicroelectronics

Description: 45 W + 45 W dual BTL class-D audio amplifier

Download TDA7492PE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

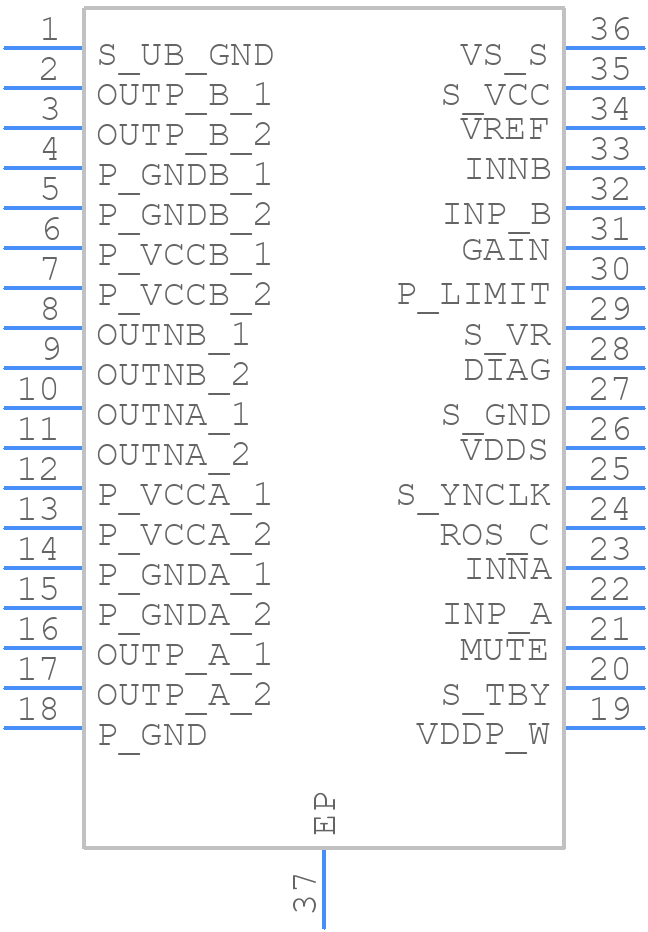

Symbol
TDA7492PE - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7492PE - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD package mechanical data
click to zoom
3D Models
TDA7492PE - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD package mechanical data
click to zoom

TDA7492PE Details

  • Manufacturer Part Number:

    TDA7492PE

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    Output Power is 90W incase of Parallel BTL (mono) application

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    32.8 dB

  • Harmonic Distortion:

    0.04%

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    10.3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    41 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

TDA7492PE Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power supply pins (VP and VN) to ensure stable operation.
  • The gain of the TDA7492PE can be configured by connecting a resistor (Rg) between the gain pin (GAIN) and the negative supply pin (VN). The gain is calculated as 20 dB + 20log(Rg/1kΩ).
  • The maximum power dissipation of the TDA7492PE is 30W, assuming a junction temperature of 150°C and a thermal resistance of 2.5°C/W. However, this value can be derated based on the ambient temperature and the thermal design of the system.
  • Yes, the TDA7492PE can be used in a bridged configuration to increase the output power. However, this requires a specific PCB layout and component selection to ensure proper operation and thermal management.
  • The TDA7492PE has a built-in thermal shutdown protection that turns off the device when the junction temperature exceeds 150°C. Additionally, a heatsink can be used to dissipate heat, and a thermal monitoring circuit can be implemented to detect overheating conditions.
