TDA7493 - STMicroelectronics

Description: 3-watt + 3-watt dual BTL class-D audio amplifier

Download TDA7493 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

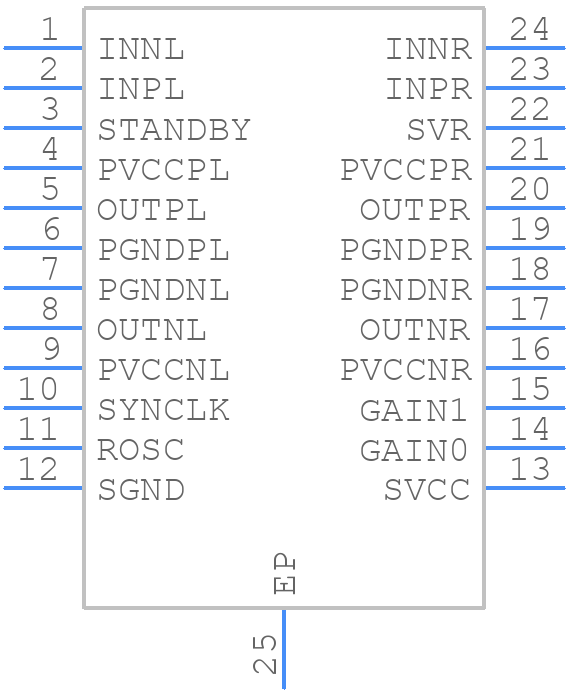

Symbol
TDA7493 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7493 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP24
click to zoom
3D Models
TDA7493 - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP24
click to zoom

TDA7493 Details

  • Manufacturer Part Number:

    TDA7493

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153ADT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    18 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TDA7493 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power supply pins (VP and VN) to ensure stable operation.
  • The gain of the TDA7493 can be configured by connecting a resistor (Rg) between the GAIN pin and the negative power supply (VN). The gain is calculated as 20 dB + (Rg/1.2 kΩ).
  • The maximum power dissipation of the TDA7493 is 20W, assuming a junction temperature of 150°C and a thermal resistance of 2.5°C/W. However, this value can be derated based on the ambient temperature and the thermal design of the system.
  • The TDA7493 has a built-in thermal shutdown feature that turns off the amplifier if the junction temperature exceeds 150°C. Additionally, a heatsink can be used to dissipate heat, and the system design should ensure good airflow and thermal management.
  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and the power supply lines should be routed away from the signal lines to minimize noise and electromagnetic interference (EMI).
