- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TDA7496L
- Part Number TDA7496L
- Manufacturer STMicroelectronics
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - TDA7496L
- Released Date Mar 20, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7496L Details
-
Manufacturer Part Number:
TDA7496L
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
POWER, DIP-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
TDA7496L Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power supply pins (VP and VN) to ensure stable operation.
-
The gain of the TDA7496L can be configured by connecting a resistor (Rg) between the GAIN pin and the negative power supply (VN). The gain is calculated as 20 dB + (Rg/1.2 kΩ).
-
The maximum power dissipation of the TDA7496L is 30W, assuming a junction temperature of 150°C and a thermal resistance of 2.5°C/W. However, this value can be derated based on the ambient temperature and the thermal design of the system.
-
Yes, the TDA7496L can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the power supply, PCB layout, and thermal design to ensure reliable operation.
-
The TDA7496L has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. Additionally, a thermal warning flag (TWF) is available to alert the system of an impending overheating condition.
Trust Checks
Community Provided
System Verified
Community Approved
TDA7496L Overview

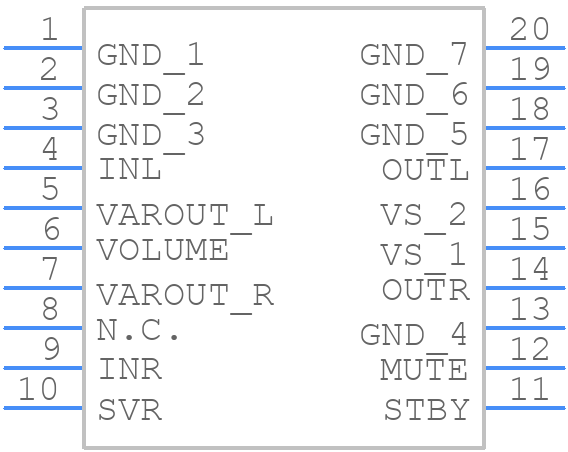

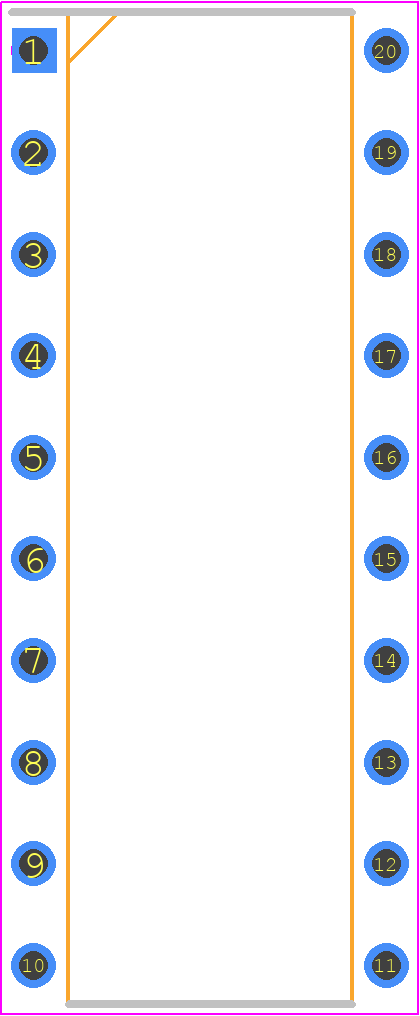

Use the download button to access the TDA7496L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA74,
or try a keyword search, such as Audio/Video Amplifiers
