TDA7498ETR - STMicroelectronics

Description: Audio Amplifiers 160-Watt 160-Watt Dual BTL Class D Amp

Download TDA7498ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

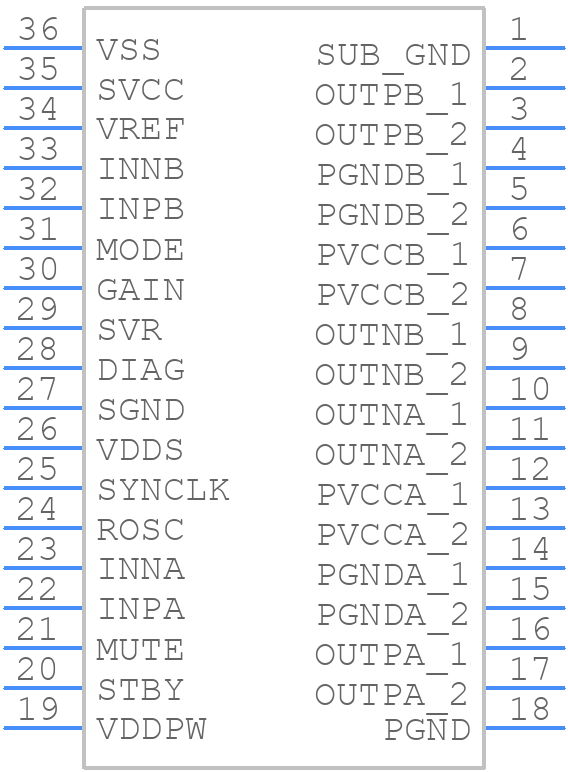

Symbol
TDA7498ETR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TDA7498ETR - STMicroelectronics PCB footprint - Other - Other - PowerSSO36_FFW2020
click to zoom
3D Models
TDA7498ETR - STMicroelectronics - 3D model - Other - PowerSSO36_FFW2020
click to zoom

TDA7498ETR Details

  • Manufacturer Part Number:

    TDA7498ETR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    35.8 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    160 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TDA7498ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TDA7498ETR should ensure that the power supply lines are separated from the signal lines, and that the analog and digital grounds are separated. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides some guidelines, but a more detailed application note is available from STMicroelectronics.
  • To optimize thermal performance, ensure good airflow around the device, and use a heat sink if possible. The TDA7498ETR has a thermal pad on the bottom, so use a thermal interface material (TIM) to improve heat transfer. Keep the device away from other heat sources, and avoid blocking airflow around the device.
  • The recommended input capacitor value for the TDA7498ETR is 220nF to 470nF, depending on the input voltage and the desired ripple rejection. A larger capacitor value can provide better ripple rejection, but may increase the startup time.
  • The TDA7498ETR can be configured for mono or stereo operation by connecting the relevant pins. For mono operation, connect the LOUT and ROUT pins together, and connect the L_IN and R_IN pins together. For stereo operation, keep the LOUT and ROUT pins separate, and connect the L_IN and R_IN pins to separate input sources.
  • The maximum power output of the TDA7498ETR depends on the supply voltage and the load impedance. With a 24V supply voltage, the maximum power output is 50W per channel into a 4Ω load, or 30W per channel into an 8Ω load.
