- Part Number TDA7498L
- Manufacturer STMicroelectronics
- Pin Count 36
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PowerSSO-36 EPU
- Released Date Aug 3, 2021
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
TDA7498L Details
-
Manufacturer Part Number:
TDA7498L
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Consumer IC Type:
CLASS D AUDIO AMPLIFIER
-
JESD-30 Code:
R-PDSO-G36
-
JESD-609 Code:
e3
TDA7498L Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends using a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the power supply pins (VP and VN) to ensure stable operation.
-
The gain of the TDA7498L can be configured by connecting a resistor (Rg) between the gain pin (GAIN) and the negative power supply pin (VN). The gain is calculated as 20 dB + 20log(Rg/1kΩ).
-
The maximum power dissipation of the TDA7498L is 30W, assuming a junction temperature of 150°C and a thermal resistance of 2.5°C/W. However, this value can be derated based on the ambient temperature and the thermal design of the system.
-
Yes, the TDA7498L can be used in a bridged configuration to increase the output power. In this configuration, two amplifiers are connected in a bridge-tied load (BTL) configuration, with one amplifier driving the positive half-cycle and the other amplifier driving the negative half-cycle.
-
The TDA7498L has a built-in thermal shutdown protection that turns off the amplifier if the junction temperature exceeds 150°C. Additionally, a heatsink can be used to dissipate heat, and the amplifier can be operated at a lower power level to reduce heat generation.
Trust Checks
Community Provided
System Verified
Community Approved
TDA7498L Overview

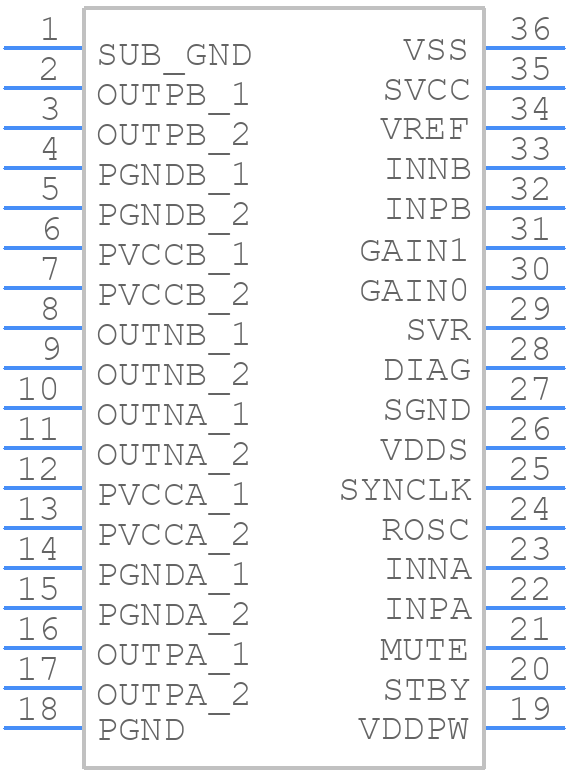

Use the download button to access the TDA7498L schematic symbol, PCB footprint, and 3D model.
