TDA7560H - STMicroelectronics

Description: Audio Amplifiers 4 x 50W Multi Quad Power Amplifer D

Download TDA7560H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

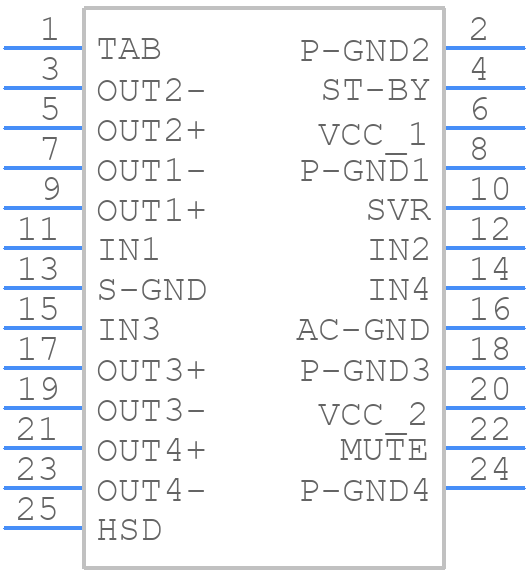

Symbol
TDA7560H - STMicroelectronics - PCB symbol
click to zoom

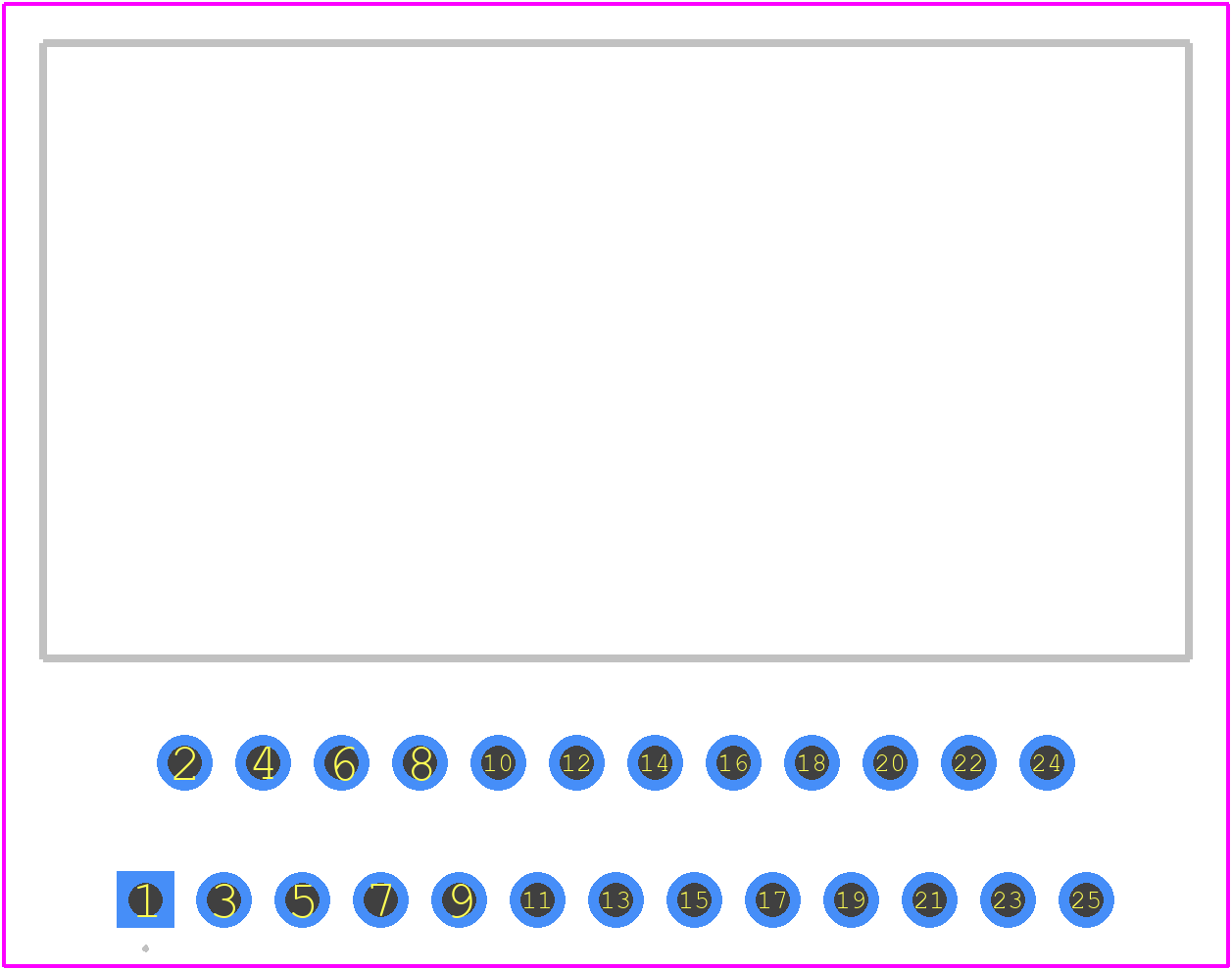

PCB Footprints
TDA7560H - STMicroelectronics PCB footprint - Other - Other - FLEXIWATT25(HORIZONTAL)
click to zoom
3D Models
TDA7560H - STMicroelectronics - 3D model - Other - FLEXIWATT25(HORIZONTAL)
click to zoom

TDA7560H Details

  • Manufacturer Part Number:

    TDA7560H

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    ZFM

  • Package Description:

    FLEXIWATT-25

  • Pin Count:

    25

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PZIP-T25

  • Number of Functions:

    4

  • Number of Terminals:

    25

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP25H,.14,.7,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    320 mA

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

TDA7560H Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7560H is 2.5W, but it can be increased to 4W with proper heat sinking.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The EN (Enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.
  • Yes, the TDA7560H is rated for operation up to 150°C, but the maximum junction temperature should not exceed 150°C to ensure reliability.
  • The output voltage of the TDA7560H can be calculated using the formula: Vout = (R1/R2) * (Vref), where R1 and R2 are the resistors connected to the FB pin, and Vref is the internal reference voltage (1.25V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7560H Overview

Use the download button to access the TDA7560H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers
