TDA75612LV-48X - STMicroelectronics

Description: 4 x 45 W power amplifier with full I2C diagnostics, SSR and low voltage operation

Download TDA75612LV-48X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

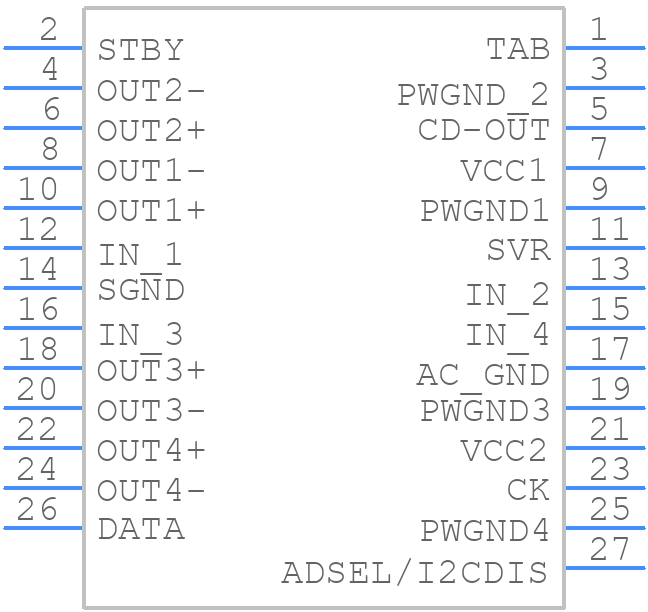

TDA75612LV-48X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

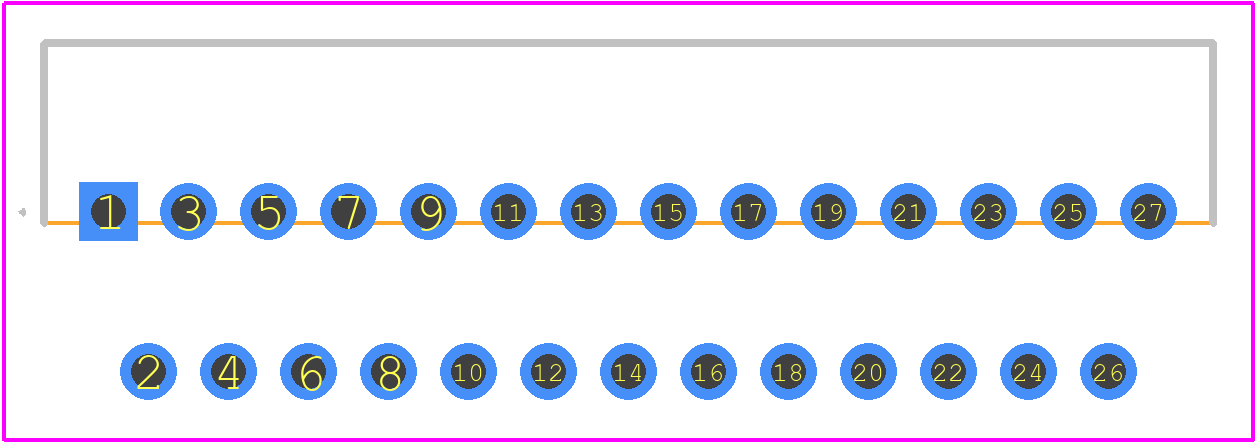

TDA75612LV-48X - STMicroelectronics PCB footprint - Other - Other - TDA75612LV-48X-1
click to zoom
3D Models
TDA75612LV-48X - STMicroelectronics - 3D model - Other - TDA75612LV-48X-1
click to zoom

TDA75612LV-48X Details

  • Manufacturer Part Number:

    TDA75612LV-48X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-27

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    0.15%

  • JESD-30 Code:

    R-XZFM-T27

  • JESD-609 Code:

    e3

  • Length:

    29.23 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    64 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP27,.16,.16,40TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

TDA75612LV-48X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure EMC, follow the guidelines in the application note AN2863, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant standards.
  • Although the datasheet specifies a maximum input voltage of 40V, it's recommended to limit the input voltage to 36V to ensure reliable operation and prevent damage to the device.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2863, which includes a step-by-step approach to identifying and resolving common issues, as well as guidance on using oscilloscopes and other diagnostic tools.
  • Yes, the TDA75612LV-48X is qualified for use in high-reliability and automotive applications, and meets relevant industry standards such as AEC-Q100. However, it's essential to follow the recommended design and manufacturing guidelines to ensure compliance with these standards.
