TDA75616LV-48X - STMicroelectronics

Description: 4 x 45 W power amplifier with full I2C diagnostics, SSR and low voltage operation

Download TDA75616LV-48X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

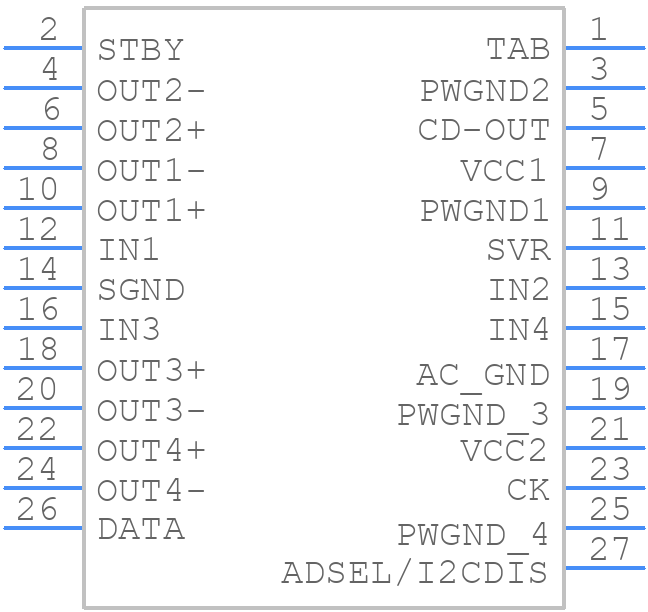

TDA75616LV-48X - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

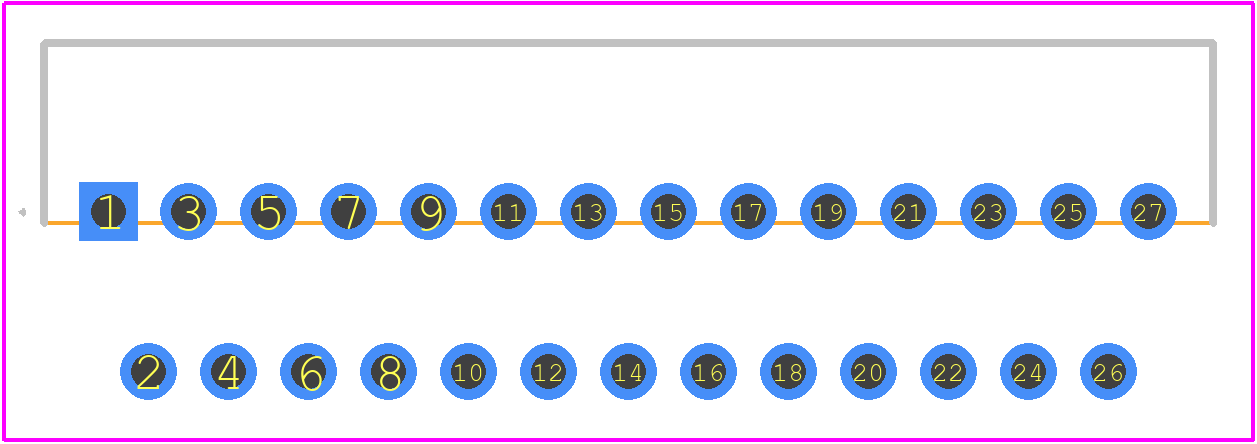

TDA75616LV-48X - STMicroelectronics PCB footprint - Other - Other - TDA75616LV-48X-1
click to zoom
3D Models
TDA75616LV-48X - STMicroelectronics - 3D model - Other - TDA75616LV-48X-1
click to zoom

TDA75616LV-48X Details

  • Manufacturer Part Number:

    TDA75616LV-48X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLEXIWATT-27

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    0.15%

  • JESD-30 Code:

    R-XZFM-T27

  • Length:

    29.23 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    64 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Equivalence Code:

    ZIP27,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    4.5 mm

TDA75616LV-48X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. A general guideline is to use a minimum of 10uF ceramic capacitor with a voltage rating of at least 2x the input voltage. However, it's recommended to consult the application note AN2863 and perform simulations to determine the optimal capacitor values for your specific design.
  • The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, according to STMicroelectronics' application engineers, the recommended maximum voltage drop is around 1.5V to ensure reliable operation and minimize power losses.
  • The TDA75616LV-48X is rated for operation up to 150°C, but it's essential to consider the thermal derating curves provided in the datasheet to ensure the device operates within its safe operating area. Additionally, it's recommended to consult with STMicroelectronics' application engineers for specific guidance on high-temperature applications.
  • To troubleshoot OCP issues, start by verifying the input voltage, output current, and sense resistor values. Ensure that the sense resistor is correctly connected and that the OCP threshold is set correctly. If the issue persists, consult the application note AN2863 and contact STMicroelectronics' technical support for further assistance.
