TDA7562B - STMicroelectronics

Description: 4 x 46 W multifunction quad power amplifier with built-in diagnostics features

Download TDA7562B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

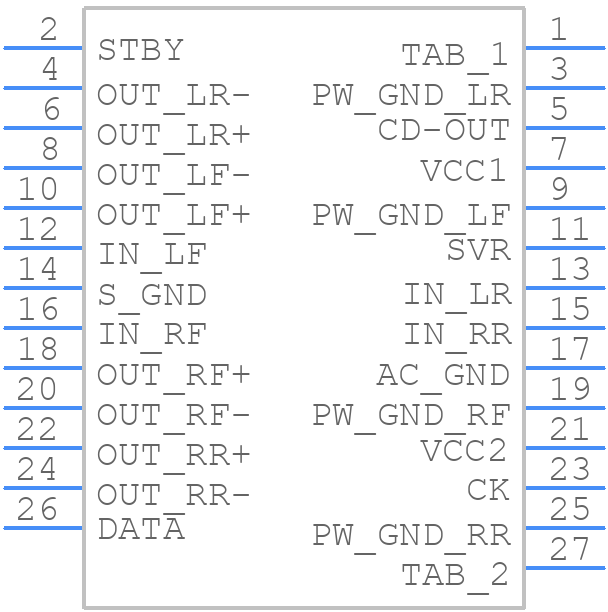

TDA7562B - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

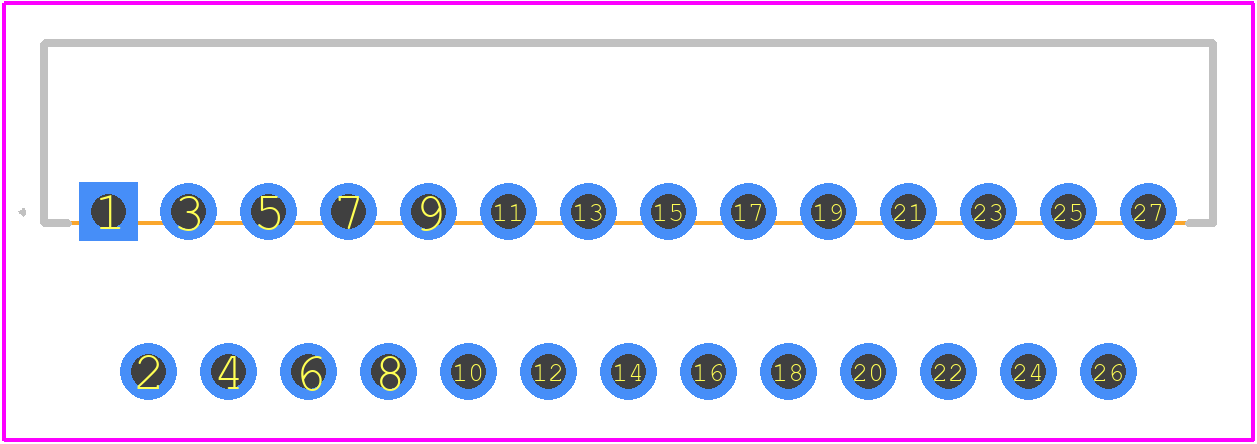

TDA7562B - STMicroelectronics PCB footprint - Other - Other - TDA7562B-3
click to zoom
3D Models
TDA7562B - STMicroelectronics - 3D model - Other - TDA7562B-3
click to zoom

TDA7562B Details

  • Manufacturer Part Number:

    TDA7562B

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PZIP-T16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP27,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    300 mA

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    30

TDA7562B Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7562B is 2.5W, but it can be increased to 4W with proper heat sinking and thermal management.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage should be decoupled with a 10nF capacitor.
  • The maximum input voltage that can be applied to the TDA7562B is 18V, but it is recommended to operate within the specified input voltage range of 8V to 15V for optimal performance.
  • The TDA7562B has built-in overvoltage and undervoltage protection, but it is recommended to add external protection circuits, such as a voltage supervisor or a crowbar circuit, to ensure robust protection against voltage faults.
  • The typical startup time of the TDA7562B is around 10ms, but it can vary depending on the input voltage, output voltage, and load conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7562B Overview

Use the download button to access the TDA7562B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
