TDA7563BPD - STMicroelectronics

Description: 4 x 50 W multifunction quad power amplifier with built-in diagnostics feature

Download TDA7563BPD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

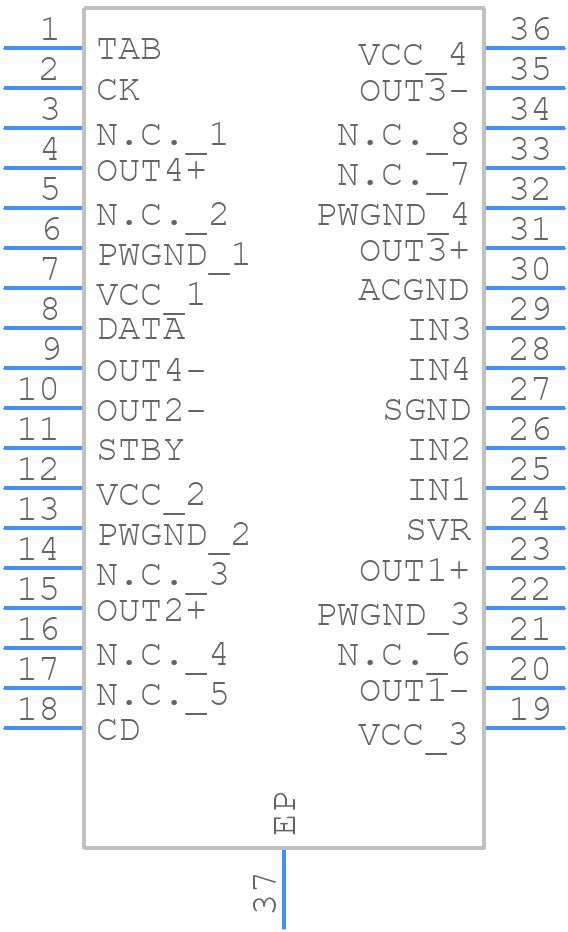

TDA7563BPD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

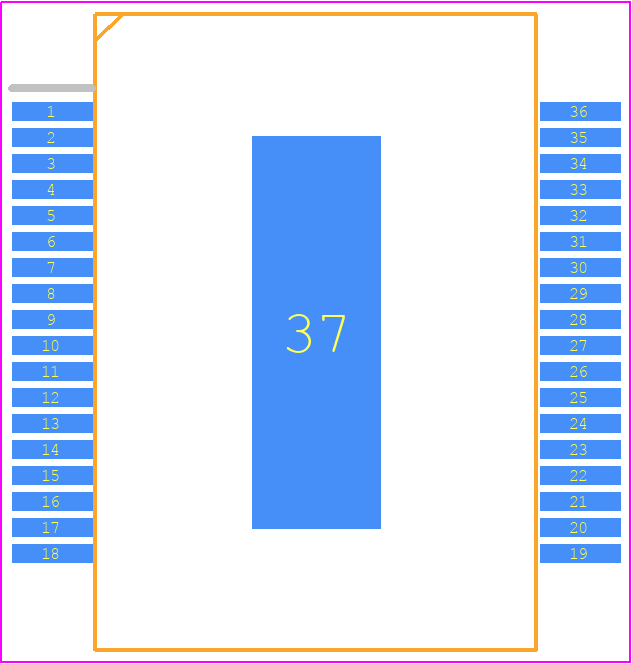

TDA7563BPD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO36 (SLUG UP)
click to zoom
3D Models
TDA7563BPD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO36 (SLUG UP)
click to zoom

TDA7563BPD Details

  • Manufacturer Part Number:

    TDA7563BPD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    CLASS AB AUDIO AMPLIFIER

  • Gain:

    30 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Output Power-Nom:

    50 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.43 mm

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

TDA7563BPD Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7563BPD is 2.5W, but it can be limited by the thermal resistance of the package and the PCB layout. It's recommended to keep the junction temperature below 150°C to ensure reliable operation.
  • The input capacitor should be chosen based on the input voltage ripple, output voltage, and output current requirements. A general rule of thumb is to use a capacitor with a value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. X7R or X5R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage for the internal power MOSFET. It's recommended to use a capacitor with a value of 10nF to 100nF and a voltage rating of at least 10V. The bootstrap capacitor should be placed close to the IC to minimize parasitic inductance.
  • The output voltage of the TDA7563BPD can be adjusted by using a resistive divider network between the output pin and the ground pin. The feedback pin should be connected to the center tap of the divider network. The output voltage can be calculated using the formula: Vout = 2.5V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The minimum input voltage required for the TDA7563BPD to operate is 6.5V, but it's recommended to use an input voltage of at least 8V to ensure stable operation and to account for voltage drops in the input capacitor and PCB traces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7563BPD Overview

Use the download button to access the TDA7563BPD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
