TDA7565 - STMicroelectronics

Description: Intelligent high efficiency (class SB) quad BTL ouput with full I2C diagnostics, built in step up and mute input

Download TDA7565 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

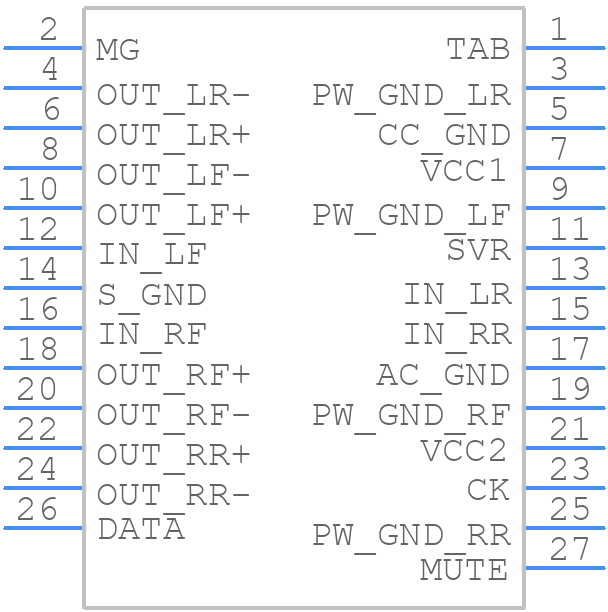

TDA7565 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

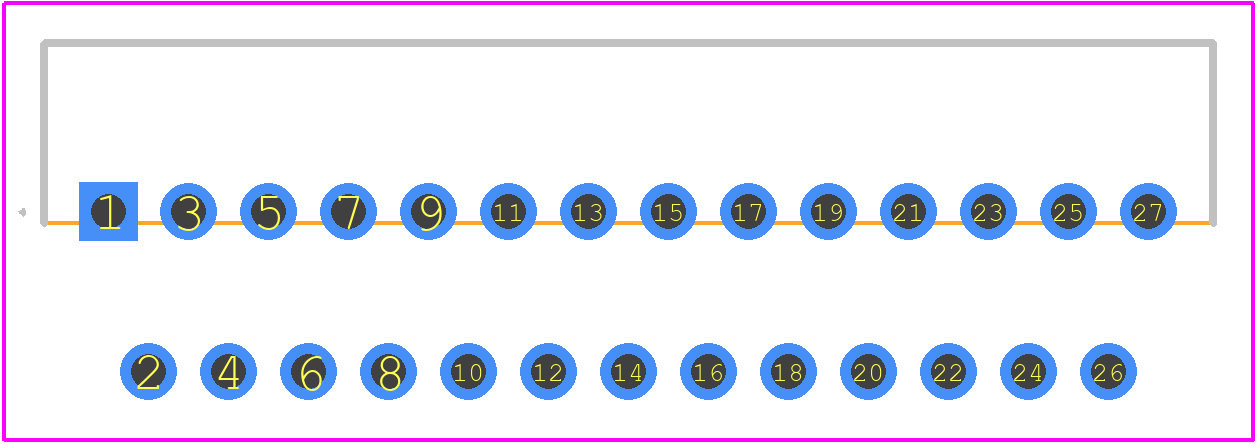

TDA7565 - STMicroelectronics PCB footprint - Other - Other - TDA7565
click to zoom
3D Models
TDA7565 - STMicroelectronics - 3D model - Other - TDA7565
click to zoom

TDA7565 Details

  • Manufacturer Part Number:

    TDA7565

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    ZFM

  • Package Description:

    ROHS COMPLIANT, FLEXIWATT-27

  • Pin Count:

    27

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-PZIP-T27

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    27

  • Output Power-Nom:

    40 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP27,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    300 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    30

TDA7565 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the TDA7565 is 2.5W, but it can be limited by the thermal resistance of the package and the PCB design. It's recommended to keep the junction temperature below 150°C to ensure reliable operation.
  • The input capacitor should be chosen based on the input voltage ripple, output voltage, and output current requirements. A general rule of thumb is to use a capacitor with a value of at least 10uF and a voltage rating of at least 2x the input voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage drops and ensure stability.
  • The bootstrap capacitor is used to generate the high-side gate drive voltage for the internal power MOSFET. It's connected between the BOOT pin and the VIN pin, and its value should be chosen based on the input voltage and the switching frequency. A typical value is 10nF to 100nF.
  • The output voltage of the TDA7565 can be adjusted by connecting a resistive divider between the VOUT pin and the GND pin, and connecting the center tap of the divider to the FB pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.25V).
  • The minimum input voltage required for the TDA7565 to operate is 6.5V, but it's recommended to use an input voltage of at least 7V to ensure proper operation and to account for voltage drops in the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TDA7565 Overview

Use the download button to access the TDA7565 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
