TDA7575BPD footprint, schematic symbol and 3D model by STMicroelectronics

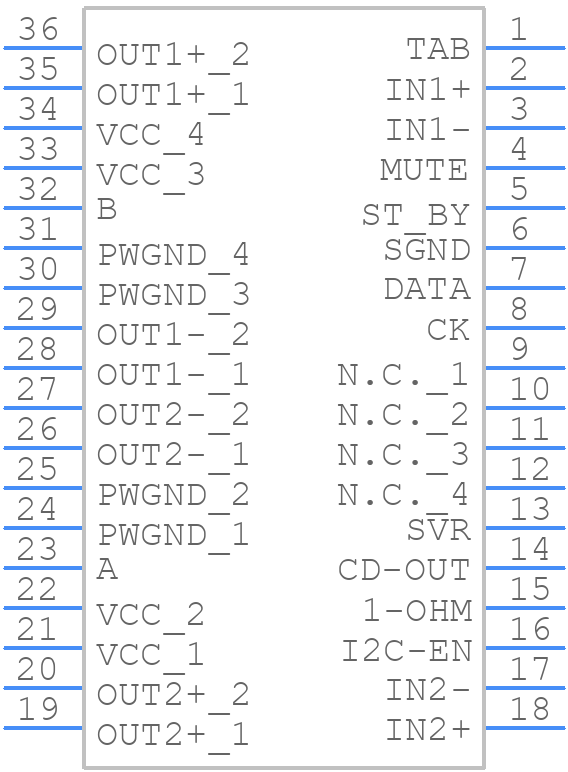

Symbol

click to zoom

PCB Footprints

TDA7575BPD - STMicroelectronics PCB footprint - Other - Other - TDA7575BPD-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7575BPD
Part Number TDA7575BPD
Manufacturer STMicroelectronics
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TDA7575BPD-3
Released Date Sep 11, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7575BPD Details

Manufacturer Part Number:
TDA7575BPD
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
ROHS COMPLIANT, SOP-36
Pin Count:
36
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
52 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
5
Bandwidth-Nom:
22 kHz
Consumer IC Type:
CLASS AB AUDIO AMPLIFIER
Harmonic Distortion:
10%
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
15.9 mm
Moisture Sensitivity Level:
3
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
36
Output Power-Nom:
50 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.56
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
245
Qualification Status:
Not Qualified
Seated Height-Max:
3.43 mm
Supply Current-Max:
200 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
8 V
Surface Mount:
YES
Technology:
BCDMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
11 mm

TDA7575BPD Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The TDA7575BPD is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software tool called TDA7575BPD Configurator, which allows designers to configure the device for their specific application and generate the required configuration code.
The maximum power dissipation of the TDA7575BPD depends on the operating conditions, such as supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is 3.5W, but this value can be derated based on the specific operating conditions. It's recommended to perform thermal simulations and measurements to ensure the device operates within the safe operating area.
Yes, the TDA7575BPD is AEC-Q100 qualified, which means it meets the automotive industry's standards for reliability and performance. However, it's essential to ensure that the device is used within the specified operating conditions and that the system design meets the automotive industry's requirements for electromagnetic compatibility (EMC) and safety.
STMicroelectronics provides a troubleshooting guide in the application note AN2863, which covers common issues and their solutions. Additionally, designers can use the TDA7575BPD's built-in diagnostic features, such as the error flag and the diagnostic register, to identify and troubleshoot issues.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TDA7575BPD Overview

Use the download button to access the TDA7575BPD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers
