TDA7577BLVPD footprint, schematic symbol and 3D model by STMicroelectronics

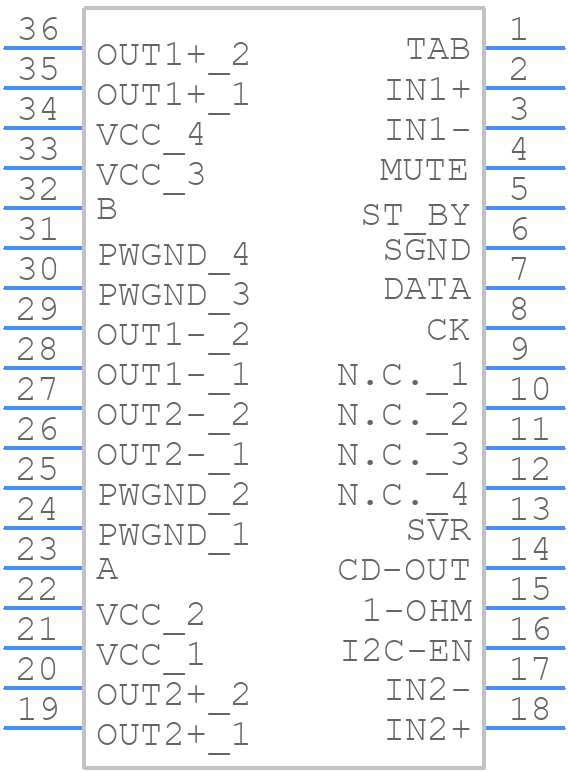

Symbol

click to zoom

PCB Footprints

TDA7577BLVPD - STMicroelectronics PCB footprint - Other - Other - TDA7577BLVPD-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TDA7577BLVPD
Part Number TDA7577BLVPD
Manufacturer STMicroelectronics
Pin Count 36
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TDA7577BLVPD-3
Released Date Sep 11, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

TDA7577BLVPD Details

Manufacturer Part Number:
TDA7577BLVPD
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOP-36
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Factory Lead Time:
52 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
3.5
Additional Feature:
Output power is 155W for single channel configuration
Bandwidth-Nom:
22 kHz
Consumer IC Type:
AUDIO AMPLIFIER
Harmonic Distortion:
0.3%
JESD-30 Code:
R-PDSO-G36
JESD-609 Code:
e3
Length:
15.7 mm
Moisture Sensitivity Level:
3
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Power-Nom:
78 W
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP36,.55
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
3.41 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
6 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
11 mm

TDA7577BLVPD Frequently Asked Questions (FAQs)

STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the application note AN2863, which includes formulas and guidelines for selecting the correct components.
The TDA7577BLVPD is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and power dissipation. It's recommended to consult the datasheet and application notes for specific guidance on thermal management and derating.
STMicroelectronics provides troubleshooting guidelines in the application note AN2863, which includes common issues, symptoms, and solutions. Additionally, the datasheet provides guidance on debugging and troubleshooting techniques.
The TDA7577BLVPD is designed to meet EMI and EMC standards, but proper PCB layout, component selection, and shielding are still required to ensure compliance. STMicroelectronics provides guidelines for EMI and EMC considerations in the application note AN2863 and the datasheet.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

TDA7577BLVPD Overview

Use the download button to access the TDA7577BLVPD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TDA75, or try a keyword search, such as Audio/Video Amplifiers
